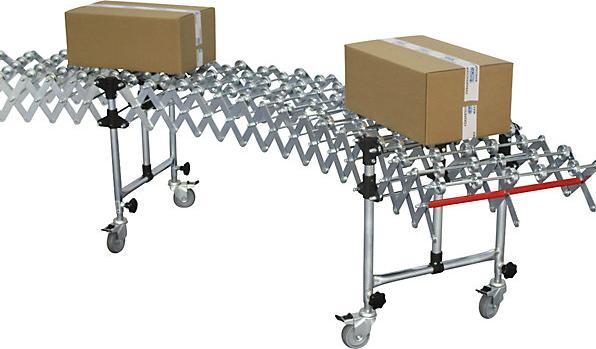

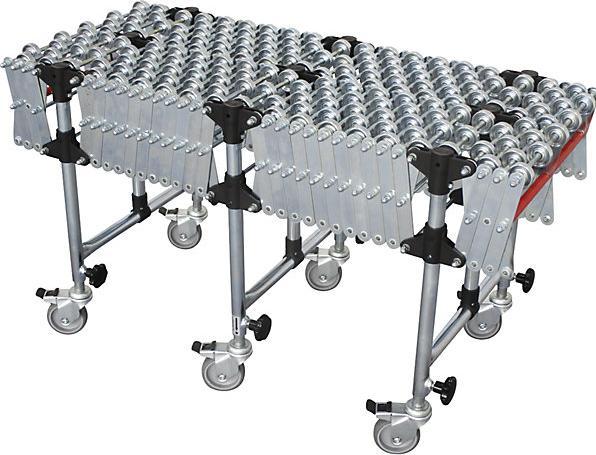

Gura Scissor Roll Track

Scissors roller conveyor, track length 2600 - 9800 mm (extendable), track width 500 mm, steel rollers.

Optimizes the material flow in the plant and is mobile. Low space requirement when pushed together. Durable, bright galvanized design.

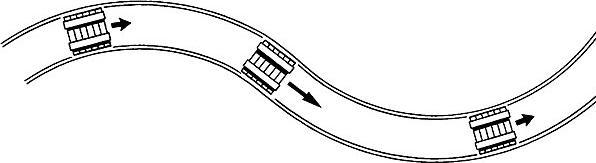

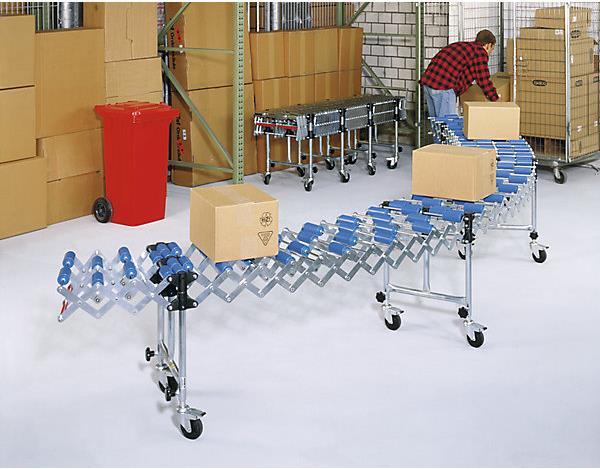

The GURA scissor roller conveyors are used in all areas of general cargo transport in the plant. Especially when a fixed system is not desired, this mobile variant is used. Own logistic structures can thus be optimally adapted and extended as desired. The tracks can be individually adjusted in length and height, and curves of up to 180° can be formed at the same time. The flat iron scissor grids are riveted and galvanized, and there are plastic handles at both ends of the lanes for pulling apart and pushing together.

Other features:

• Top edge of track height adjustable from 720 - 1150 mm.
• For conveyed goods from 440 - 700 mm.
• Center distance with extended track 150 mm.
• Rollers (Ø 48 mm) with ball bearings on 8 mm axles, spacer sleeves in between.

Other dimensions and electric drive on request.
