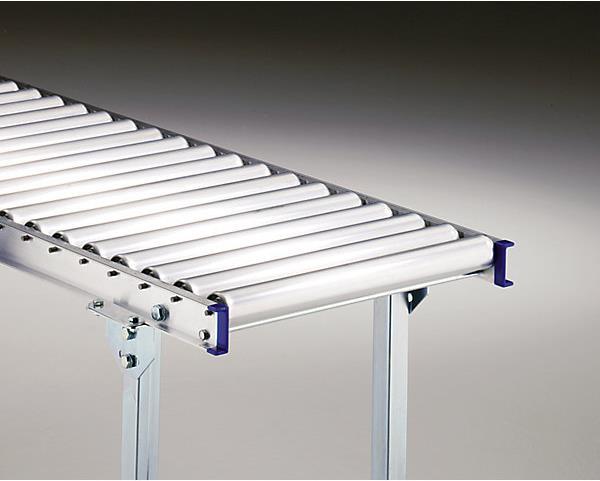

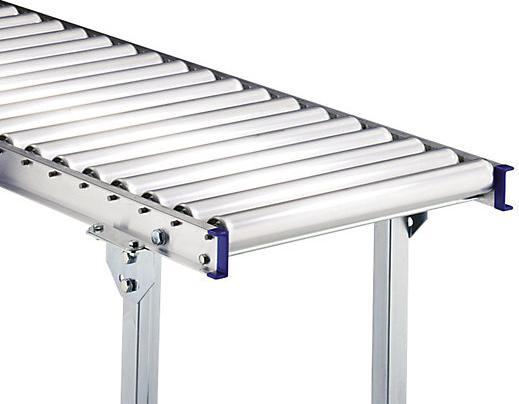

Gura Lightweight roller conveyor, aluminum frame with aluminum rollers

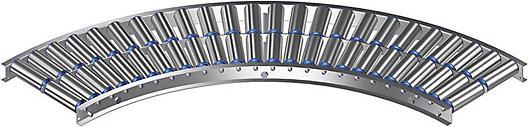

Light roller conveyor, aluminum frame with aluminum rollers, track width 300 mm, 90° curve, inner radius 800 mm, axle spacing 75 mm.

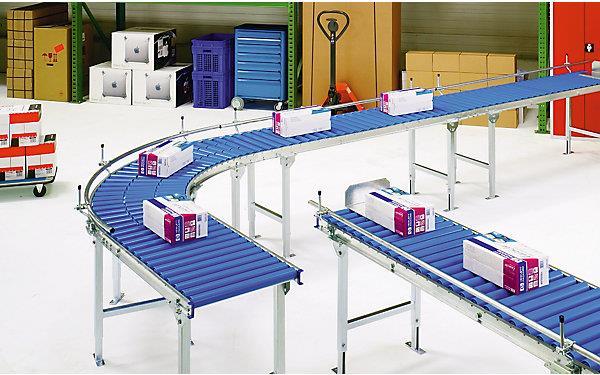

Optimizes material flow within the company. Modular system, allowing for individual customization. Its very low weight makes it flexible for various applications.

This light roller conveyor from GURA quickly and easily improves the operational material flow. The versatile modular system allows for customization according to your needs. Stable side profiles made of aluminum measuring 20 x 60 x 20 mm. Ball-bearing aluminum rollers with a diameter of 50 mm or spring axle with a diameter of 8 mm.

Assembly:

• Assemble the required conveyor length from individual track pieces and determine the need for straight sections and curves.

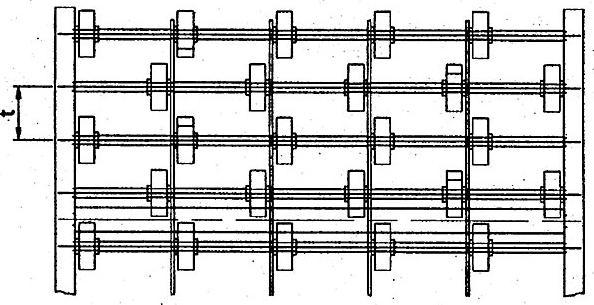

• Determine the track width based on the largest size and the axle spacing of the rollers based on the smallest size of the conveyed goods.

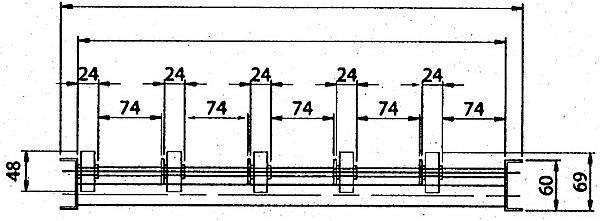

• With an axle spacing of 75 mm, the effective length is 975 mm for 1 m and 1950 mm for 2 m.
• Use our individual CAD service for comprehensive complete planning.

Delivery excludes double stands and side guides. Special designs, 45° curves, and passages available upon request.
