Güde Electric winch 1200 12 Volt

Suitable for fixed mounting or mounting on the trailer hitch with an adapter plate. Usable everywhere.

Features include:

• 3 m operating cable

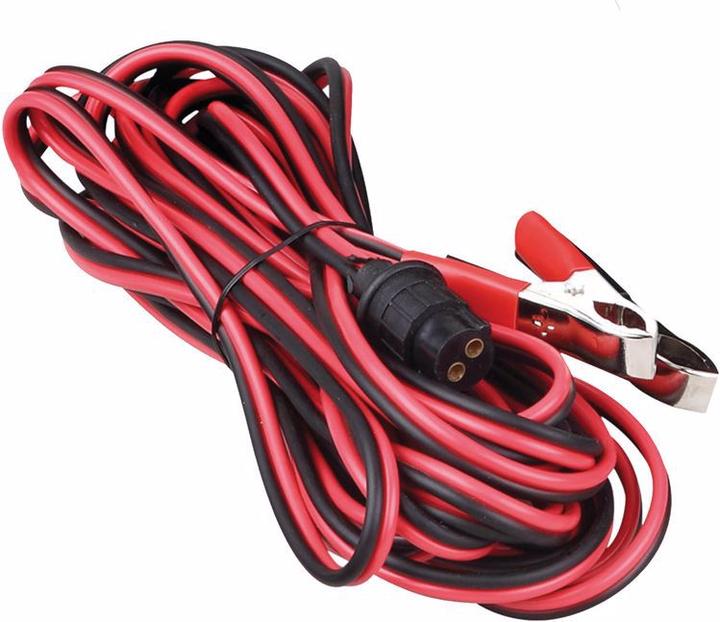

• 3 m power cable
• Hand crank

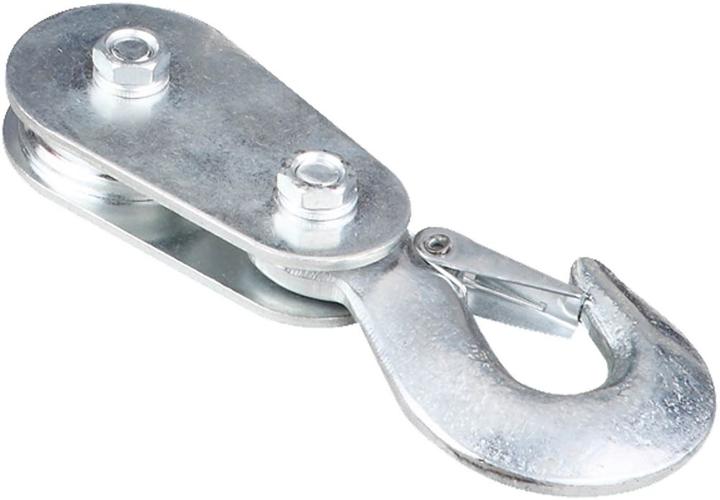

• Pulley
• Carrying handle
• Freewheel function

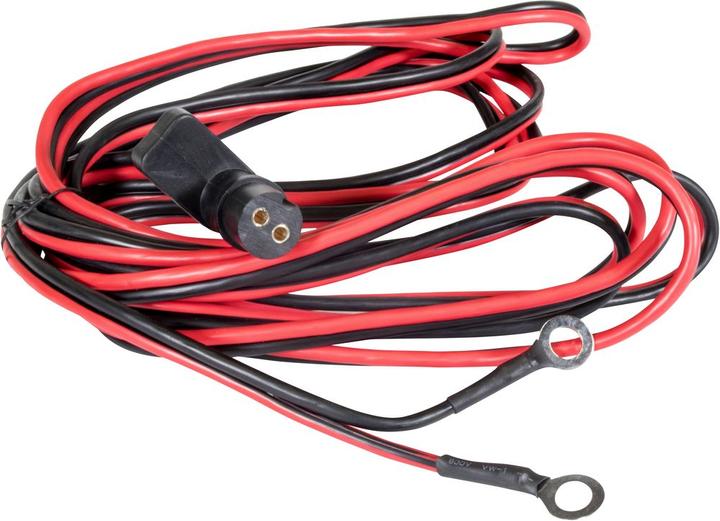

• Connection cable with ring eyelets

2 years warranty!

Technical data:

• Connection: 12 V
• Protection class: III
• Protection class (IP): 54
• Current consumption: 10 A
• Max. tractive force with pulley: 1800 kg
• Max. tractive force without deflection pulley: 900 kg
• Max. tractive force floating objects: 2200 kg
• Max. tractive force rolling objects: 2700 kg
• Pulling speed: 1 m/min
• Rope length: 9000 mm
• Diameter of the rope: 5.5 mm
• Length control cable: 3 m
• Connection cable length: 300 cm

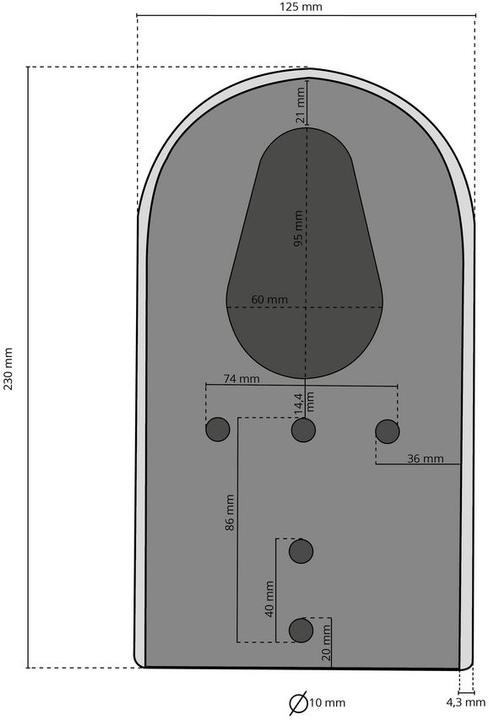

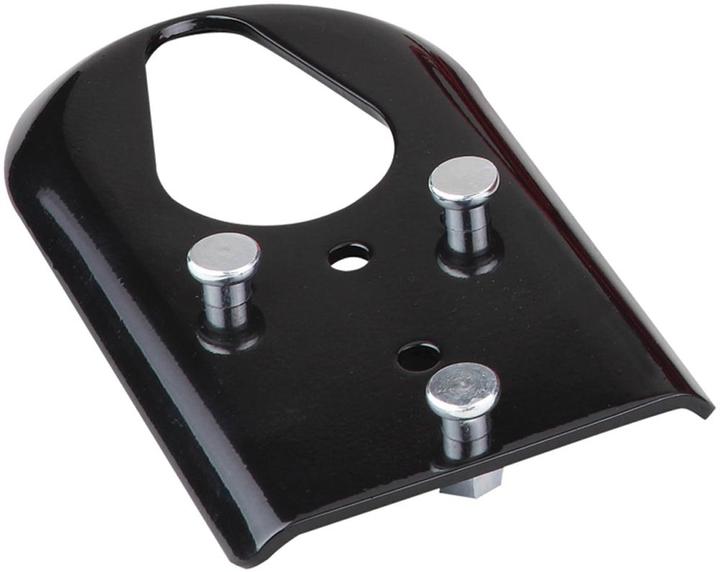

• Mounting plate dimensions: 230 x 125 mm
• Hook opening drop shape: 95 x 30 - 60 mm
• Length: 250 mm
• Width: 260 mm
• Height: 200 mm
• Net weight: 12.5 kg
• Gross weight: 13.2 kg

Scope of delivery:
1 x Güde electric winch 1200/12 volt.
