Güde Electric chain hoist

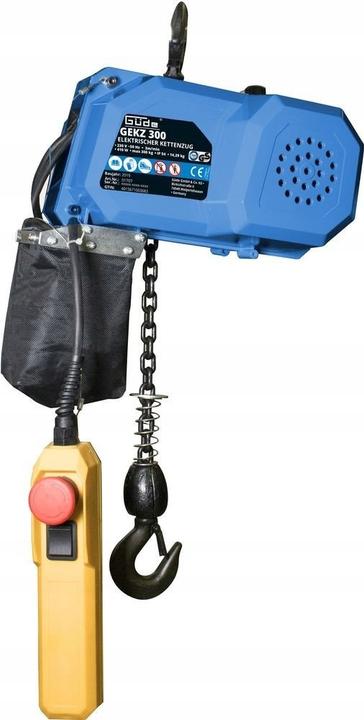

The Güde electric chain hoist GEKZ 300 is suitable for moving and lifting loads. It features an end-stop switch to protect the motor when the chain is fully retracted. The one-handed operation with emergency stop allows for precise lowering and lifting of the load, with a maximum lifting capacity of 300 kg. The mechanical gear brake holds the weight even after switching off, and the maintenance-free chain requires no lubrication. Installation is simple and quick with mounting hooks. Its low weight enables easy handling. The Güde electric chain hoist GEKZ 300 operates very quietly.

Technical Data:

• Mains voltage: 230 V
• Frequency: 50 Hz
• Motor power (P1): 410 W
• Rated current: 1.70 A
• Protection class (IP): 54
• Ø lifting speed: 3 m/min
• Chain length: 3.00 m
• Length of control cable: 1.45 m
• Max. weight capacity: 300 kg
• Length: 290 mm
• Width: 225 mm
• Height: 430 mm
• Net weight: 14.1 kg
• Gross weight: 15.3 kg

Scope of delivery:
1x Güde electric chain hoist GEKZ 300.
