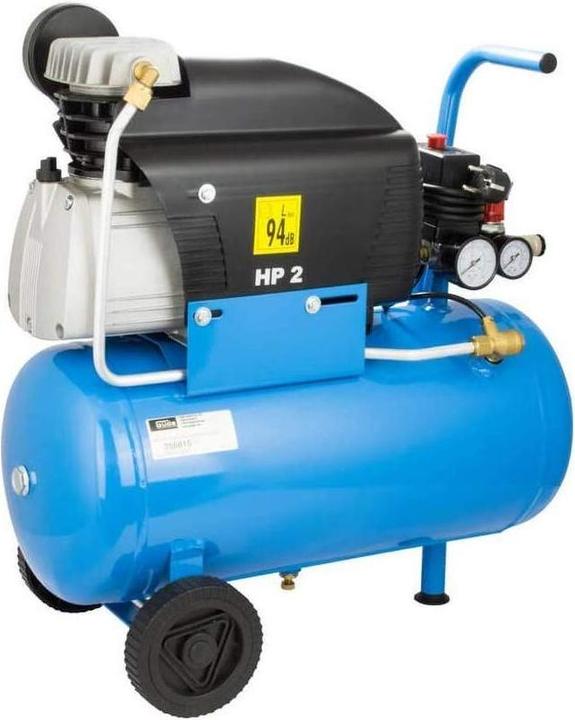

Güde Compressor 2311024 12-piece

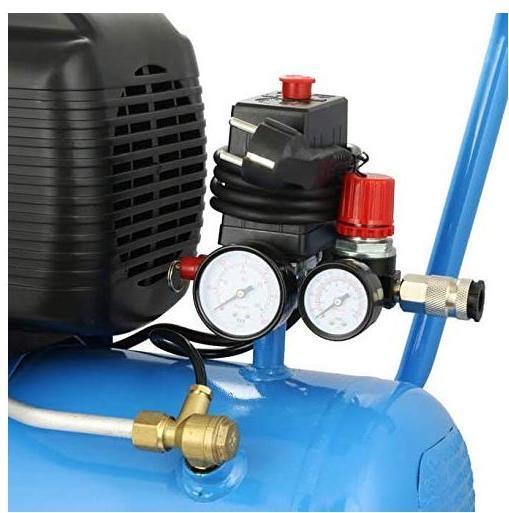

Oil-lubricated 1-cylinder piston compressor with transport handle, pressure switch, 2 manometers (tank and working pressure), pressure reducer, relief and safety valve, condensate drain valve, rubber buffer, blow gun, tire inflator, 5-piece adapter set, and 5-meter spiral hose.

The Güde Compressor 231/10/24 is an oil-lubricated 1-cylinder piston compressor equipped with a transport handle and a pressure switch. Additionally, the device features 2 manometers (tank and working pressure), a pressure reducer, a relief and safety valve, as well as a condensate drain valve. Furthermore, the compressor includes a rubber buffer, a blow gun, and a tire inflator. The delivery includes a 5-piece adapter set and a 5-meter spiral hose.

Technical data:

• Mains voltage: 230 V
• Frequency: 50 Hz
• Motor power (P1): 1.5 kW
• Operating mode: S3 / 50%
• Protection class (IP): 22
• Unit: oil-lubricated
• Motor speed: 2850 rpm
• Suction capacity: 206 l/min
• Effective delivery rate at 0 bar: 140 l/min
• Effective delivery rate at 4 bar: 100 l/min
• Effective delivery rate at 7 bar: 77 l/min
• Dimensions L x W x H: 550 x 280 x 597 mm
• Net/gross weight: 21.3 kg/22.9 kg

Delivery includes:
1x Güde Compressor 231/10/24, 12-piece set.
