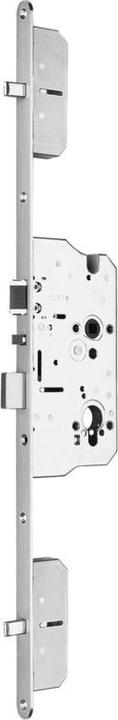

Glutz Serrures multipoints MINT 18945 SV Panic E

Self-locking

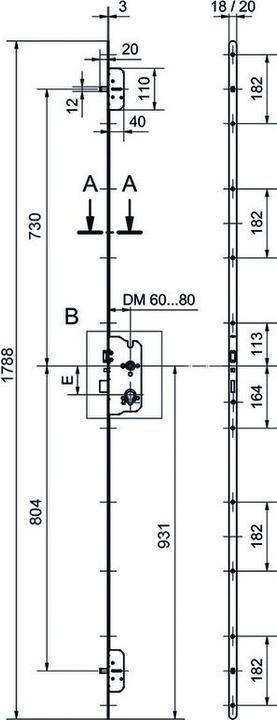

3-point locking, latch blocking, adjustable comfort latch, hardened steel main bolt 8x30 mm, 2 hardened steel additional bolts 8x12 mm

Self-locking multi-point locking system with integrated latch blocking, control of the closing mechanism, and panic E-function. Suitable for use in residential and apartment entrance doors as well as in commercial buildings. Operated from the outside via the cylinder or in conjunction with an electronic fitting through identification systems such as badges, biometrics, or a building management system. The DIN L adjustable comfort latch ensures quiet latching and a smooth engagement into the strike plate. With its solid construction, hardened main bolt, and two hardened additional bolt locks, door systems can be built up to resistance class RC3. The lock is approved for fire resistance and smoke protection tests according to EN 1634. Compatible with a variety of Glutz fittings.

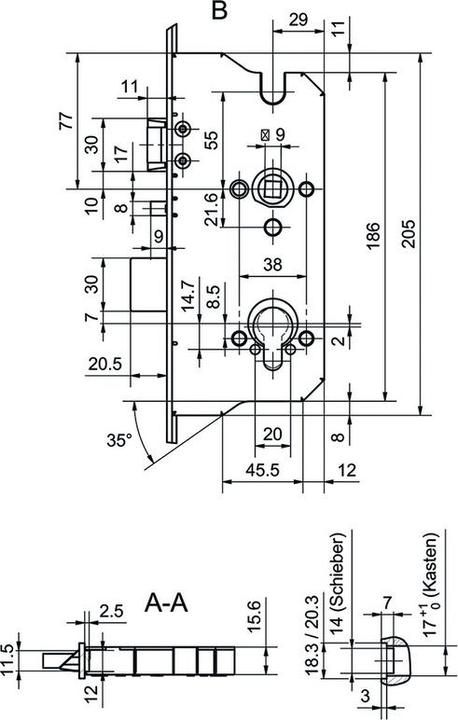

The cylinder screw is not centered on the profile. To determine the cylinder lengths: Center of the profile = center of the lock cylinder. No asymmetrical cylinders with L-coupling allowed. No reduction sleeves for the lock nut/bolt allowed. No external mechanical bolt switch contact recommended.
