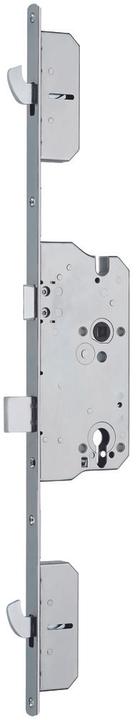

Glutz Multi-point locks MINT 18939 Combi (1-turn)

F+AMMAvA-r Dr+AMMAvA-cker and key operation, single turn

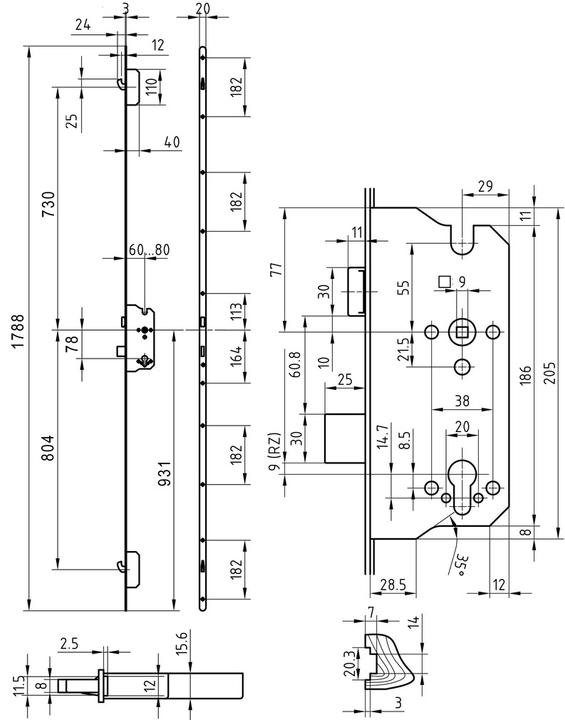

3-point locking, bolt and latch blocking, reversible steel bolt on the left and right, hardened steel main bolt 8x30 mm, 2 hardened steel swivel hook bolts with a thickness of 8 mm, without exchange, with forced nut, without strike plates

The high-quality mechanical multi-point locking system features integrated bolt and latch blocking. Designed for use in house and apartment entrance doors / corridor doors and in utility buildings under challenging climatic conditions or increased door sealing pressure. Simple locking and unlocking via the handle, followed by easy securing via the cylinder. The DIN L adjustable comfort latch ensures quiet shooting of the latch and a smooth entry into the strike plate. With its solid construction, the hardened main bolt, and the two hardened additional swivel hook bolts, door systems can be built up to resistance class RC3. The lock is approved for fire resistance and smoke protection tests according to EN 1634. Compatible with a variety of Glutz fittings.

The cylinder screw is not centered on the frame. To determine the cylinder lengths: Center of the frame = center of the lock cylinder. No reduction sleeves for the lock nut/spindle are permitted.
