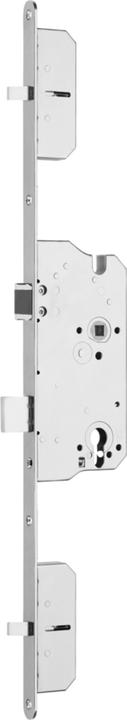

Glutz Multi-point locks MINT 18920 SB PE

Mud-resistant, Panic E
hardened main bolt throw 20 mm, two hardened additional bolt throws 20 mm

The high-quality mechanical multi-locking system with Panic E function, as well as integrated latch blocking and sliding bolt security when locked. Designed for use in residential and commercial construction, e.g., for secondary entrance doors with emergency exit requirements (EN 179). Operation from the outside via the cylinder/change function (button/push handle). The emergency exit function allows exit from the inside at any time (lever). The robust construction is designed for maximum bolt cross and opposing forces according to EN 12209. Thus, door systems can be built up to resistance class RC3.

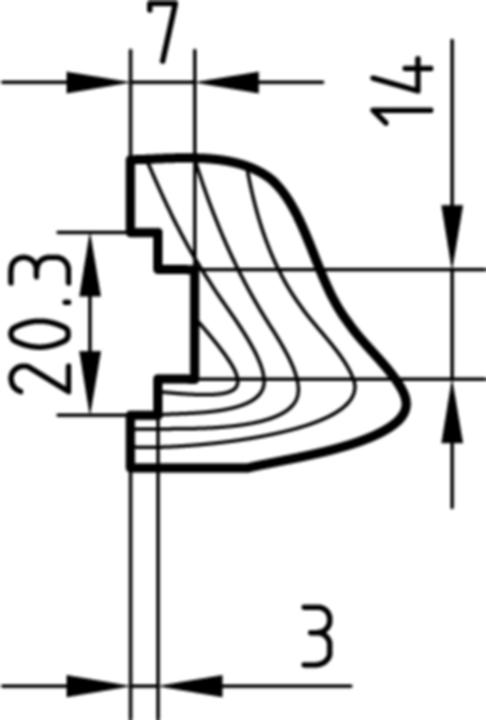

The cylinder screw is not centered on the profile. To determine the cylinder lengths: Center of profile = Center of lock cylinder. No knob cylinders are permitted. When using a standard cylinder, the key must always be removed. No reduction sleeves for the lock nut/spindle are permitted.
