Gira Presence detector Mini Standard KNX 222000

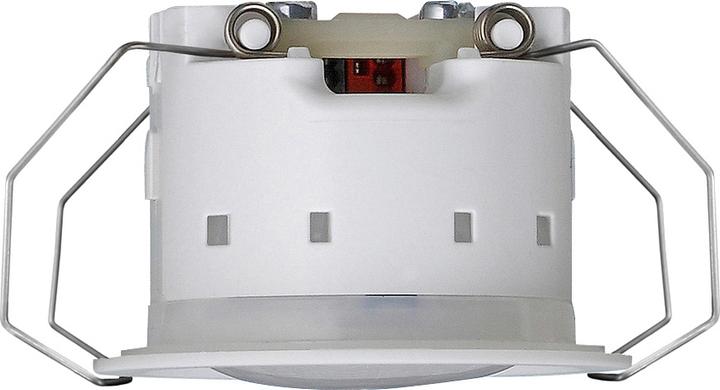

Gira Presence Detector 222000

Manufacturer: Gira
Designation: Mini Standard Presence Detector KNX
Type: 222000
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Execution: Presence Detector
Mounting Type: Surface-mounted
Material: Plastic
Material Quality: other
Surface Protection: other
Color: white
Transparent: no

The Gira Presence Detector 222000 is a Mini Standard presence detector for KNX in pure white. It offers the following features:

• Display of motion detection (permanent or only during test mode).
• One configurable function block.
• Adjustable operating mode: Ceiling sensor, presence detector, alarm.
• Configurable as single device, main unit, or secondary unit.
• Operating mode for single device or main unit: Automatic, semi-automatic (manual on / automatic off or automatic on / manual off).
• Two outputs (for function: ceiling sensor, presence detector).
• Output (for function: ceiling sensor, presence detector): Switching, stairwell function, forced switching, dimming value transmitter, light scene secondary unit, temperature value transmitter, brightness value transmitter, temperature operating mode.
• Twilight level adjustable via external communication object or Teach-In.
• Additional send delay via external communication object.
• Adaptive run-on time (self-learning additional send delay).
• Short-term presence function.
• Feedback of twilight level.
• Locking function.
• Manual operation via touch sensor (separate communication object).
• Switching brightness (for presence detector) adjustable via Teach-In.
• Measurement of time since last motion.

Small design ring included. Connection and branching terminal for KNX included.
EAN: 4010337014683.
