Gira Motion detector top

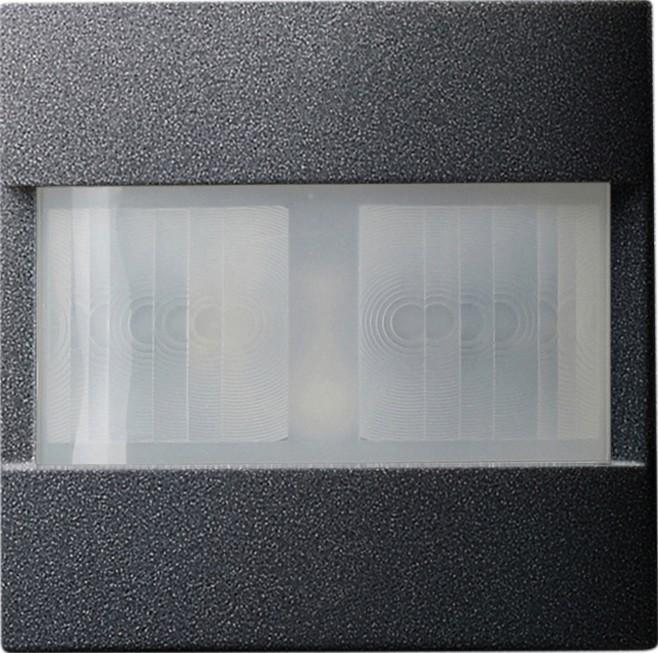

Gira Motion Sensor Attachment 537328

Manufacturer: Gira
Designation: Motion Sensor Attachment Anthracite
Type: 537328
Execution: Motion Sensor
Mounting Type: Flush-mounted
HVAC Control: No
Mounting Height: 1.1 m
Max. Range to One Side: 25 m
Max. Frontal Range: 40 m
Adjustable Sensitivity: Yes
Adjustable Brightness: Yes
Dimming Function with Dimming Insert: Yes
Animal Passage: Yes
Staircase Monitoring: Yes
Combination Motion Sensor/Push Button: No
With Orientation Light: No
Material: Plastic
Material Quality: Thermoplastic
Halogen-free: Yes
Suitable for Protection Class (IP): IP20
Max. Switching Duration: 2 min
Detection Angle Horizontal: 180 °
Compatible with Apple HomeKit: No
Color: Anthracite
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Gira Motion Sensor Attachment 537328: Additional Details
System 3000 Motion Sensor Attachment 1.10 m Standard System 55 Anthracite

Features: Automatic control of lighting based on heat movement and ambient brightness. Operates with System 3000 switching, dimming, or secondary insert 3-wire. Extension of detection range in combination with secondary insert 3-wire. Adjustable brightness threshold. Sensitivity adjustable in four levels. When connecting a System 3000 secondary insert with control attachment or mechanical switch to the main unit, the lighting can be turned on or dimmed for the duration of the after-run time. With System 3000 dimming insert: Turn on with the last set brightness or saved switching brightness. The switching brightness can only be permanently saved via System 3000 secondary insert with control attachment.

Notes: The detection field is horizontally aligned and may not have a boundary when used outdoors. Therefore, pay attention to the suitability of the mounting location outdoors or use the motion sensor attachment at 2.20 m.
EAN: 4010337049838.
