Gesutra Tandem lifting table, with hand operated control unit, max. load 4000 kg
More than 10 pieces in stock at third-party supplier
Product details

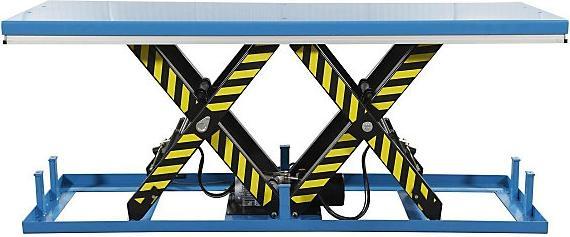

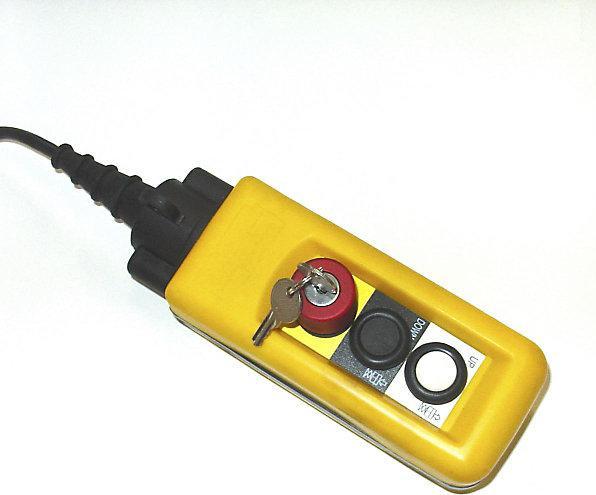

Tandem lift table with manual control, load capacity 4000 kg, operating voltage 230 V. Ergonomics at the workplace. Safely lift and lower long goods. This lift table impresses particularly with its exceptionally large platform. Depending on the model, the platform is 2500 mm or 3000 mm long. The tandem scissors are positioned side by side and operate absolutely synchronously. This allows for the lifting and moving of particularly heavy and bulky loads of up to 8000 kg (depending on the model). The stationary lift table is also equipped with a practical control unit that is protected to IP65 and has a cable length of approximately 3 m. This allows the lift table to be safely raised or lowered from outside the danger zone. The solid construction and robust design of the lift table ensure a long service life in operations or warehouses. The lift tables are coated with a high-quality powder finish that prevents unwanted scratching of the equipment. Stable scissor supports and quality hydraulic pumps with pressure relief valves are standard features.
Type of conveyor system | Lift table |
Lifting height | 0.76 m |
Load capacity | 4 t |
Material | Steel |
Item number | 13016714 |
Manufacturer | Gesutra |
Category | Conveyor technique |
Release date | 1.4.2020 |
External links |
Colour | Blue |
Exact colour description | Light blue RAL 5012 |
Material group | Metal |
Material | Steel |
Surface finish | Powder coating |
Roll material | Steel |
Type of conveyor system | Lift table |
Lifting height | 0.76 m |
Load capacity | 4 t |
Operating voltage | 230 V |
Frame material | Steel |
Lifting time | 39 s |
Main Hub | 800000 m/min |
CO₂-Emission | |
Climate contribution |
Length | 250 cm |
Width | 85 cm |
