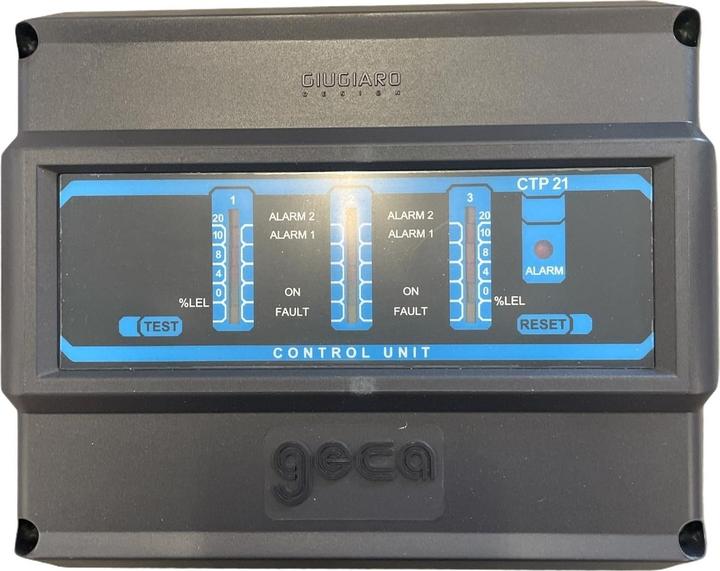

Gas Alarm System CTP21
For optimal safety in monitoring natural gas or liquefied gas installations. A maximum of 3 different remote sensors can be connected to the control unit depending on the type of monitoring. Easy installation, operation, and maintenance. Robust design for wall mounting. The control unit SE 194K requires absolutely no adjustment or calibration after installation. This CE-certified gas warning device offers high user comfort. It can be operated either with 12V DC or 230V AC. The device is standardly equipped with 1 sensor, which is housed in a separate, solid enclosure (for external mounting). With 2 additional sensors, it is possible to monitor two rooms independently, for example. The following safety elements can be directly connected to the central unit:
Relay 1:
Alarm device, such as an external horn and fan
Alarm values: 0.15 Vol. % (liquefied gas)
0.50 Vol. % (natural gas)
Relay 2:
Solenoid valve interruption of gas supply
Alarm values: 0.3 Vol. % (liquefied gas)
1.0 Vol. % (natural gas)
Relay 3:
Fault relay sensor defective, interruption
When an alarm is triggered, the red LED of the respective sensor lights up on the central unit. The additionally connected safety elements to relays 1 and 2 are activated. In case of a fault (yellow LED of the respective sensor lights up), relay 3, for example, switches on a connected warning light.
Hazard detector type | Gas detector |
Alarm signal | Acoustic warning, Optical warning signal |
Power supply | Electrical connection |
mounting style | Wall-mounted |
Items per sales unit | 1 x |
Item number | 47629321 |
Manufacturer | Geca |
Category | Hazard detectors |
Release date | 7.8.2024 |
Hazard detector type | Gas detector |
Alarm signal | Acoustic warning, Optical warning signal |
mounting style | Wall-mounted |
Application range | Indoor |
Power supply | Electrical connection |
Operating voltage | 230 V |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 Sensor, Gas warning device |
Length | 7.50 cm |
Width | 16 cm |
Height | 11.50 cm |
