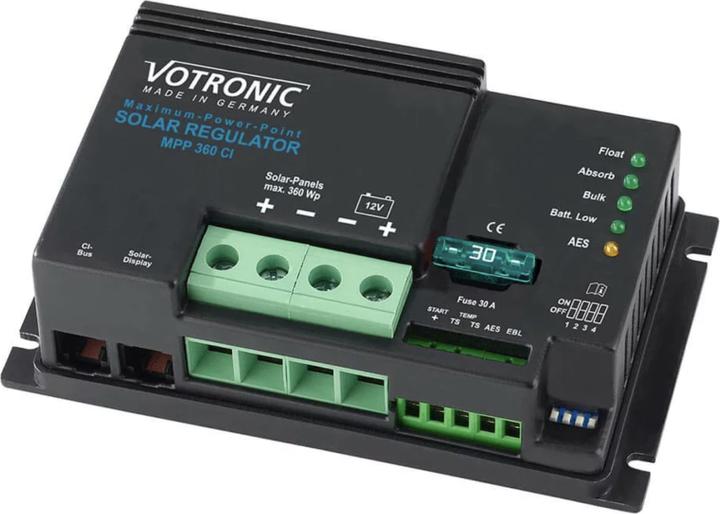

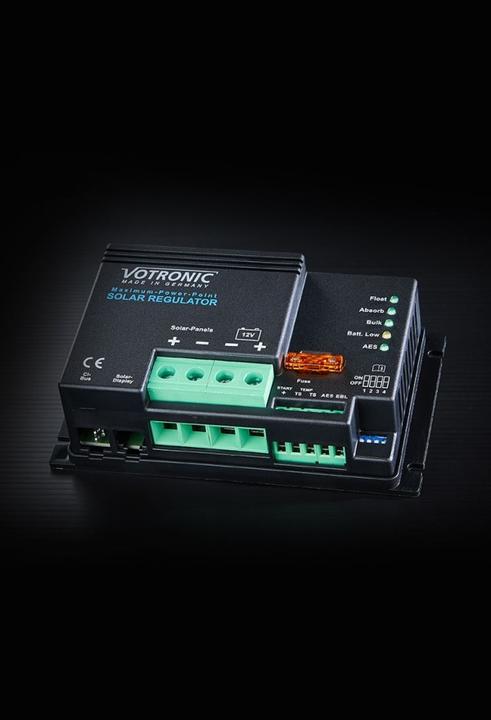

Frankana Votronic solar charge controller MPPMPP 360 CI

Effective battery charging for motorhomes, caravans, boats, and autonomous solar systems. The Votronic solar controller from the MPP (Maximum Power Point) series with IU1oU2 charging characteristic is connected as a link between the solar panel(s) and battery(ies). With MPP technology, the controller automatically determines the maximum power output (MPP) of the solar modules several times per second. It transforms the voltage surplus of the solar module into a higher charging current for the battery, achieved through high-frequency switching regulator technology with high efficiency. This increase in charging current results in shorter charging times and the best possible utilization of the solar system's performance. The MPP solar controllers operate fully automatically, are maintenance-free, and offer the following features:

Highlights at a glance:

• MPPT charging (Maximum Power Point Tracking)
• CI bus connection: for displaying all relevant data on a central vehicle display
• 8 switchable charging characteristics for lead, gel, AGM, and LiFePO4 batteries

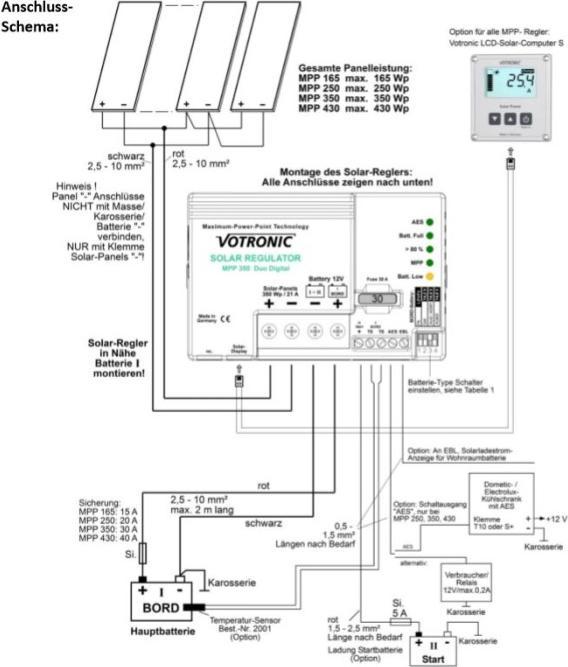

• Two battery charging outputs: automatic charging of the main supply battery (12V) as well as support charging and maintenance charging (max. 1 A) of the vehicle starter battery with overload protection
• Measurement output for EBL: allows for the convenient use of a built-in solar power display in the electrical block to monitor the solar system
• Switch output AES: enables the automatic switching of refrigerators with AES from gas to electricity when there is a consistently abundant solar power surplus.
