Product details

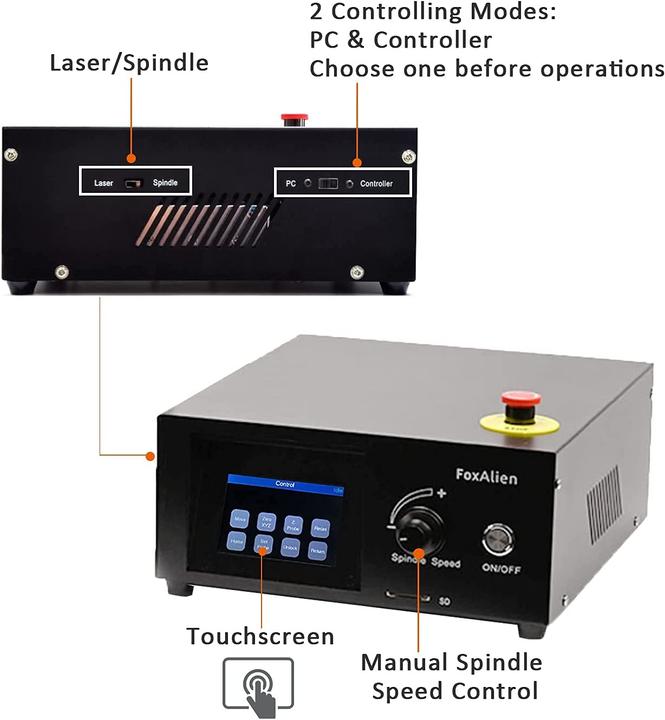

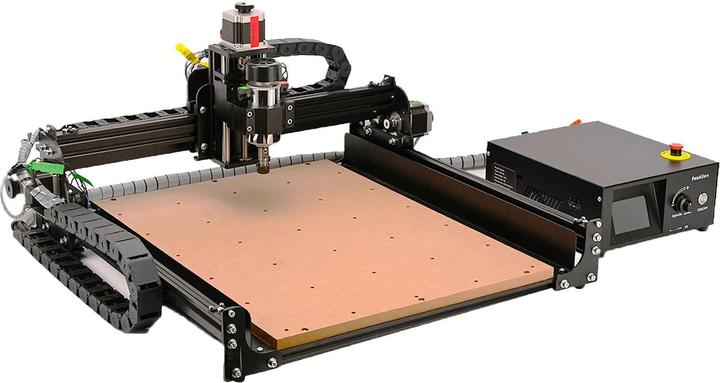

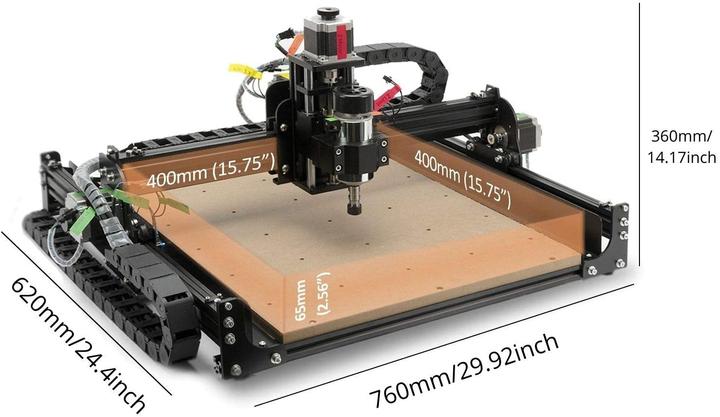

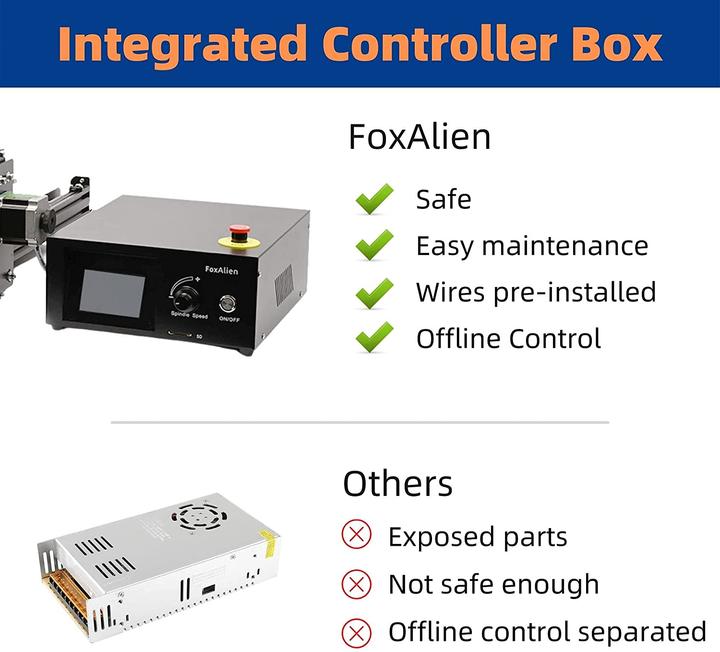

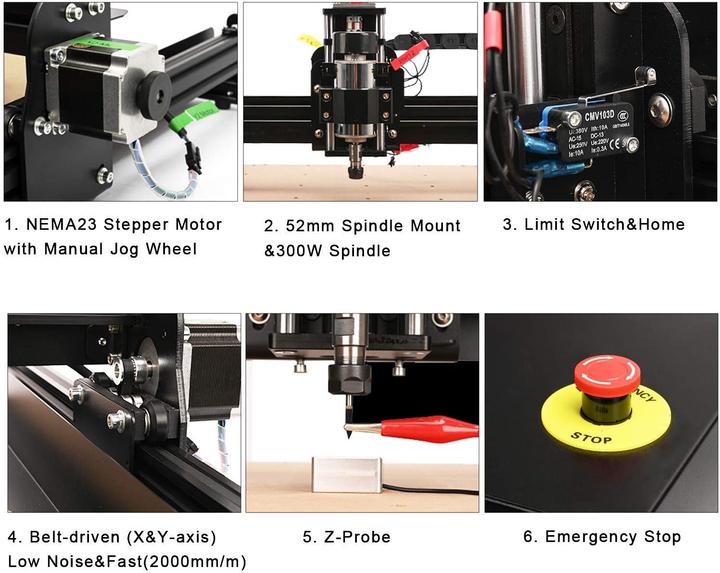

The CNC Router 4040-XE uses a 300W spindle and NEMA 23 stepper motors, which are more powerful and efficient. The maximum movement speed is 2000 mm/min, and the spindle speed range is from 0 to 10,000 RPM. The control board, power supply, emergency stop, and cables are integrated into a controller box. It is easy to use, easy to clean, and safe. The controller features a 3.5-inch touchscreen LCD that also functions as an offline controller. It can engrave, cut, and drill a variety of materials such as wood, metal, MDF, acrylic, foam, resin, nylon, carbon fiber, and circuit boards. It is excellent for home use and business purposes. It has a large engraving area of 400 x 400 x 55 mm and can handle both small and large materials. The CNC machine is based on GRBL and is compatible with GRBL control software. Assembly is straightforward, with the main parts pre-assembled; full assembly takes only 15-30 minutes. The wires are clearly labeled for quick connection and bundled in a drag chain for easy management.
