Product details

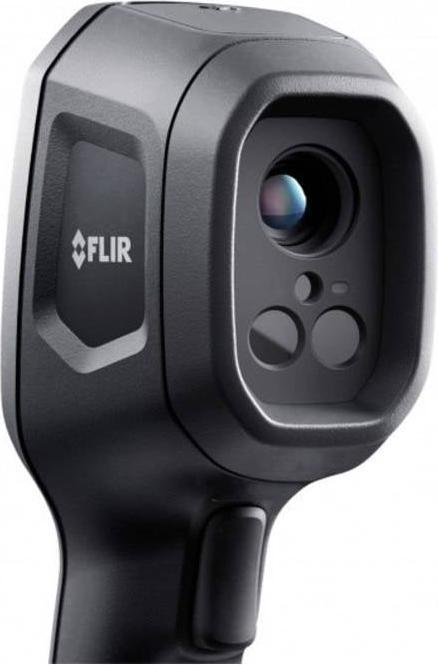

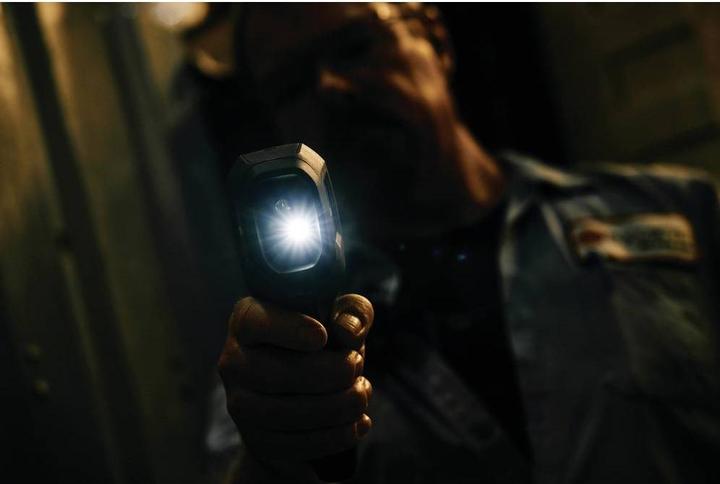

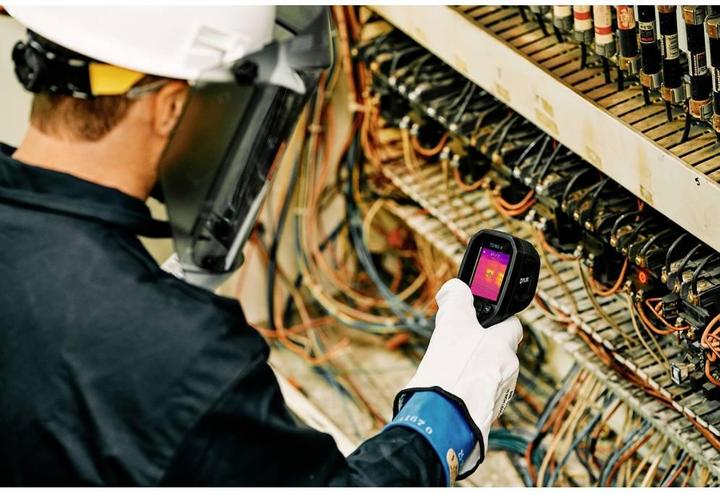

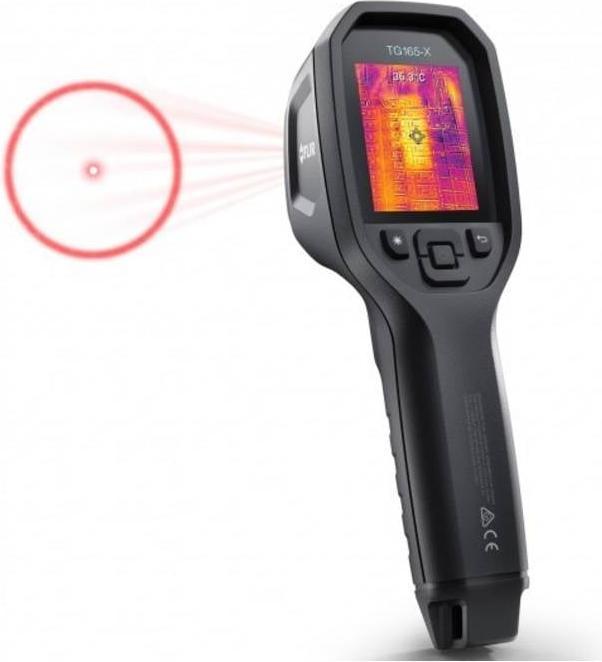

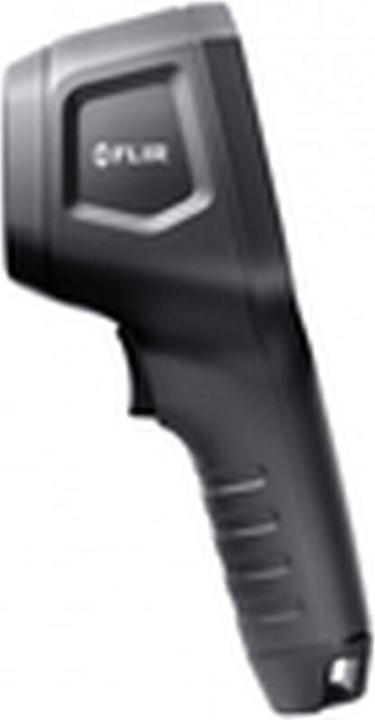

The FLIR TG165-X significantly reduces inspection and diagnosis time by helping you visually locate the source of electrical, mechanical, and HVAC/R system faults. Instead of searching for temperature anomalies with a single-point IR thermometer, this non-contact temperature measurement and imaging tool displays a thermal image of your target, including any hot spots or cold zones that may indicate a problem. Thanks to FLIR's patented MSX image enhancement, which adds visual details to the full thermal images, you can clearly see wires or components and even read labels. The bullseye laser ensures that you always target the correct component for measurement, while the design with easy-to-use buttons and settings helps you complete the job quickly and stress-free. With internal storage for up to 50,000 images, the FLIR TG165-X is ready to use right out of the box, thanks to its lithium-ion battery.
Image resolution | 320 x 240 pixels |
Temperature measuring range min. | -25 °C |
Temperature measuring range max. | 300 °C |
Thermal imaging camera type | Hand-held thermal imaging camera |
Item number | 15714686 |
Manufacturer | Flir |
Category | Thermal imaging cameras |
Manufacturer no. | TG165-X |
Release date | 21.4.2021 |
Sales rank in Category Thermal imaging cameras | 7 of 235 |
External links |
Colour | Black |
Exact colour description | Black |
Thermal imaging camera type | Hand-held thermal imaging camera |
Temperature measuring range min. | -25 °C |
Temperature measuring range max. | 300 °C |
Measurement accuracy | 1.50 °C |
Thermal sensitivity (NETD) | 70 mK |
Horizontal field of view | 51° |
Vertical field of view | 66° |
Focus type | Fixed |
Refresh rate | 8.70 Hz |
Image sensor resolution | 4800 Pixels |
Image resolution | 320 x 240 pixels |
Interfaces / communication module | USB |
Protection type (IP code) | IP54 |
Country of origin | Switzerland |
CO₂-Emission | |
Climate contribution |
Power supply | Rechargeable battery operated |
Battery voltage | 3.70 V |
Battery size | Device specific |
Battery life | 5 h |
Scope of delivery | Bag, Lanyard, Manual, USB cable |
Length | 21 cm |
Width | 6.40 cm |
Height | 8.10 cm |
Weight | 394 g |
Length | 32.50 cm |
Width | 25.20 cm |
Height | 11 cm |
Weight | 873 g |
