Fischer G-clamp with quick adjustment

50 pcs.
CHF0.84/1pcs.
Ratings
BrandMore from Fischer
Delivered between Wed, 24.9. and Sat, 4.10.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

With pre-assembled countersunk screw.

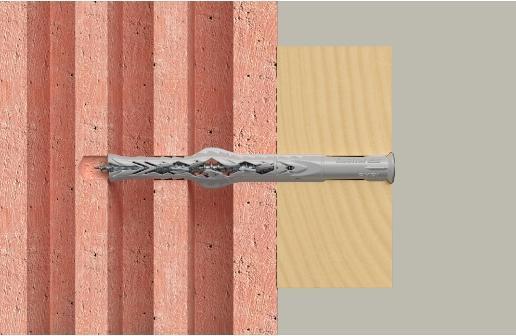

Application area: For fastening gates, door frames, fire doors, windows, railings, timber beams, cladding, facade, ceiling, and roof constructions made of wood and metal, and much more.

Product advantage: Three anchoring depths (50, 70, and 90 mm). When set deep, the longer ribs prevent the dowel from rotating. With European Technical Assessment for concrete and masonry ETA 07/0121. Approved for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. SXRL 10 is building authority approved for single fixings. Important: In hollow blocks, only drill in rotary mode (without hammer)!

Minimum drilling depth (mm): 150
Length (mm): 140
Color: Gray
Usable length (mm): 90/70/50
Shape: SXRL-T
Drill diameter (mm): 10
Diameter (mm): 10
Material: Nylon/Steel
Brand: Fischer
Size (mm): 10 x 140
Drive: TX40
Content (pcs): 50.

Key specifications

anchor type
Frame anchor
borehole diameter
10 mm
Dowel length
140 mm
Items per sales unit
50 pcs.
bolt diameter
10 mm
Documents
Technical data sheet.pdf
Item number
17827584

General information

Manufacturer
Fischer
Category
Wall plugs
Manufacturer no.
522701
Release date
19.11.2021
Sales rank in Category Wall plugs
293 of 4758
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Metal
Material
galvanized steel

Dowel Properties

anchor type
Frame anchor
borehole diameter
10 mm
Dowel length
140 mm
bolt diameter
10 mm
borehole depth
150 mm
building material surface
Cellular concrete, Concrete
Material application
Cellular concrete, Concrete, Masonry, Tile

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 pcs.
