Fischer Concrete anchor Thickness

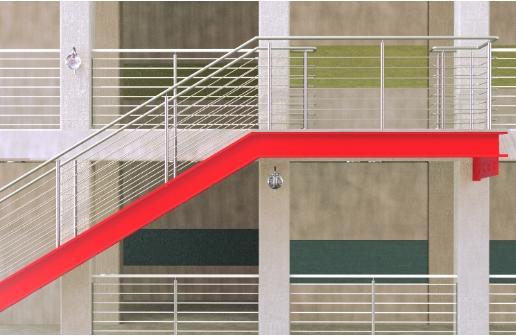

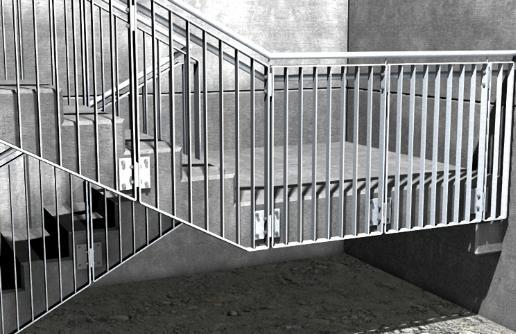

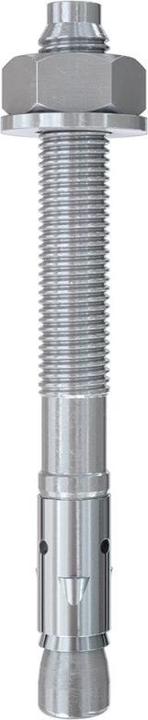

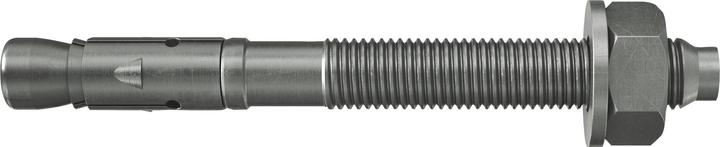

The Fischer bolt anchor FBZ is the economical steel anchor for cracked concrete. With the FBZ, the acting loads are safely transferred into the substrate. The steel anchor is ideal for securing railings, cable trays, and brackets, for example. Advantages: Reliable function and easy installation. Two anchoring depths provide more flexibility in application. The use of hollow drills and diamond drill bits is regulated in the European Technical Assessment ETA. Range: M 8 – M16, available in galvanized steel and stainless steel. Applications: Steel constructions, railings, brackets, ladders, cable trays, machines, stairs, gates, facades, wooden constructions. Building materials: Concrete C20/25 to C50/60, cracked and uncracked concrete C12/15. Functionality: The FBZ is suitable for pre- and through-mounting. When tightening the nut, the cone bolt is pulled into the expansion clip, tensioning it against the borehole wall. When the specified torque is reached, the anchor is set in accordance with approval.
