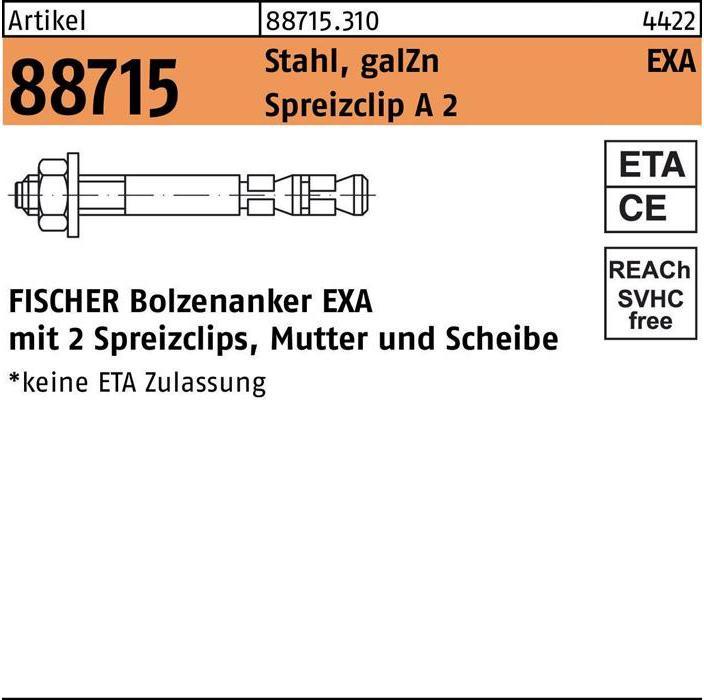

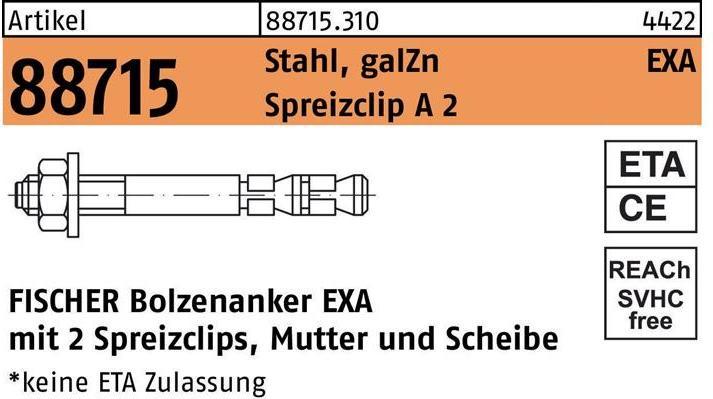

Fischer Bolt anchor R 88715 EXA 10/ 45 Galvanised steel/Spreader clip A 2

50 pcs.
CHF1.46/1pcs.
Ratings
BrandMore from Fischer
Delivered Fri, 6.6.
More than 10 items in stock at supplier

Product details

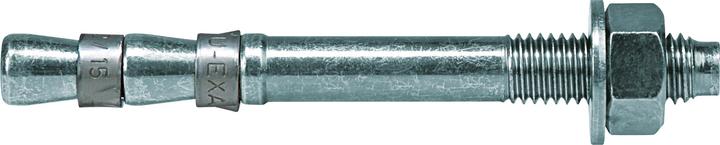

Fischer Deutschland Express Anchor EXA 10/45 GVZ

Manufacturer: Fischer Deutschland
Designation: Express Anchor
Type: EXA 10/45 GVZ
Anchoring: Expansion Anchor
Anchor Design: External Thread
Fastening Device: Nut
Material of the Anchor: Steel
Surface Protection of Anchor: Galvanically/Electrolytically Galvanized
With Collar: No
Thread Type: Metric
Thread Size (Metric): 10
Length: 122 mm
Fastening with Expansion Tool: No
Drill Hole Diameter: 10 mm
Through-Mounting: Yes
Pre-Mounting: Yes
Spacing Mounting: No
Max. Clamping Thickness: 45 mm
Wrench Size: 17 mm
Number of Nuts: 1
Number of Washers: 1

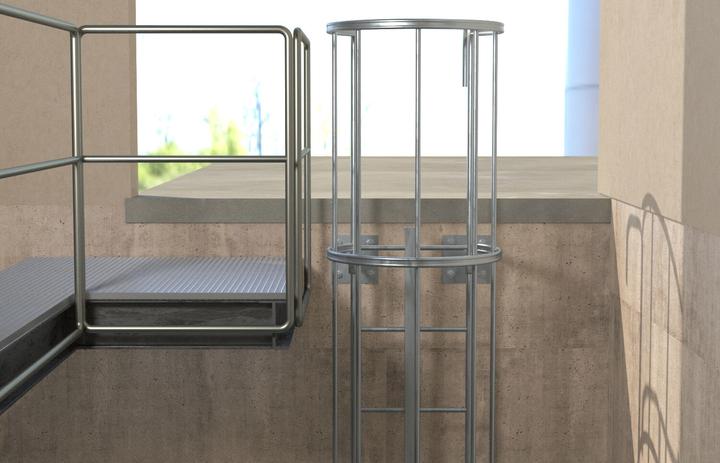

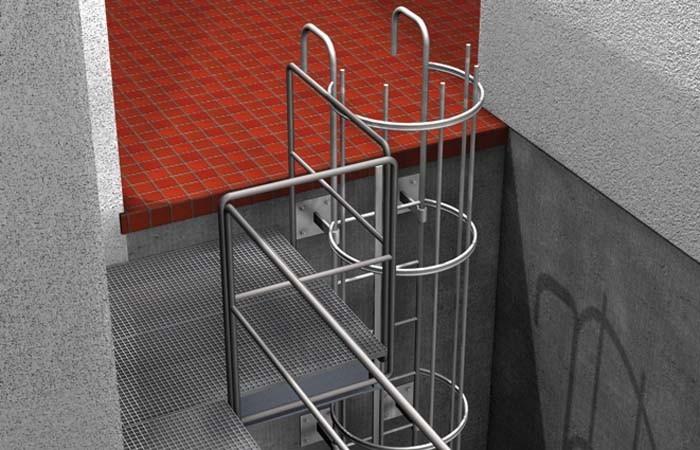

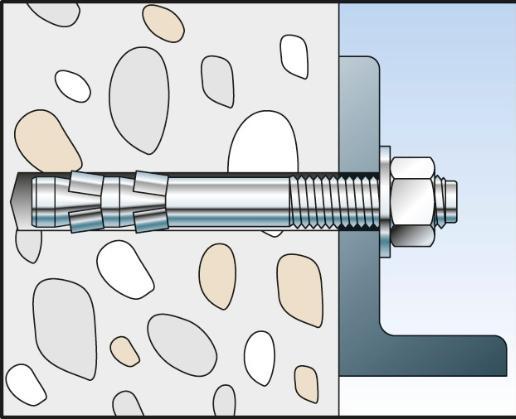

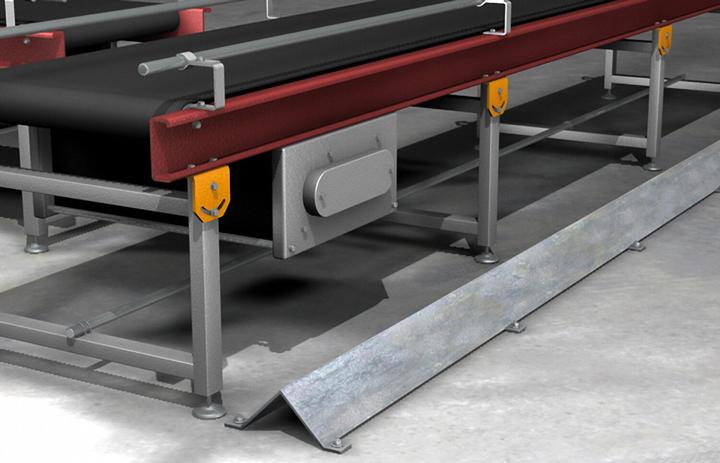

The Fischer Bolt Anchor EXA is a particularly installation-friendly steel anchor for fixings in uncracked concrete. The two expansion clips increase the expansion area and reduce the tightening slip. In the version made of galvanized steel, the bolt anchor is suitable for fixing railings, brackets, and cable trays indoors.

Key specifications

anchor type
Expansion dowels
borehole diameter
10 mm
Dowel length
122 mm
Items per sales unit
50 pcs.
bolt diameter
10 mm
Item number
22023955

General information

Manufacturer
Fischer
Category
Wall plugs
Manufacturer no.
887153100100045
Release date
8.9.2022

Colour

Colour
Silver
Exact colour description
galvanised/spreader clip A 2

Material

Material group
Metal
Material
galvanised/spreader clip A 2, Steel

Dowel Properties

anchor type
Expansion dowels
borehole diameter
10 mm
Dowel length
122 mm
bolt diameter
10 mm
borehole depth
115 mm
building material surface
Concrete
Material application
Concrete

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 pcs.
