Fischer Plaster dowel FIF-PN 8/160

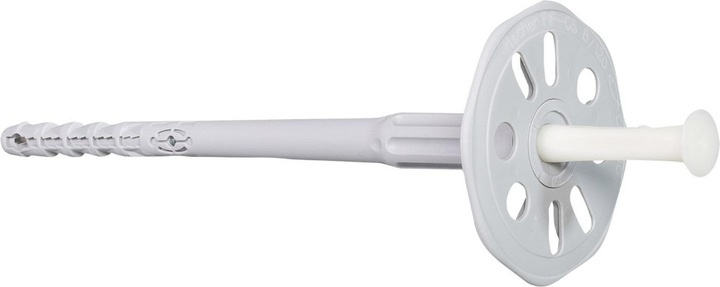

The ETA-approved fischer plaster anchor FIF-PN is ideal for securely fastening pressure-resistant insulation materials up to 190 mm thick in plaster facades, such as polystyrene boards, wood wool lightweight boards, and PU rigid foam boards in concrete, solid, and hollow blocks. The fischer plaster anchor FIF-PN consists of a gray anchor sleeve with an attached octagonal plate and a plastic nail. The FIF-PN is hammered in, saving time and costs. The integrated impact lock prevents premature spreading and allows for trouble-free installation. The fiberglass-reinforced plastic nail reduces thermal transmission and prevents markings on the plaster surface.

Advantages:

• Can be installed with just a few hammer blows.
• With a plate thickness of only 2.5 mm, the plate fits optimally into the insulation, allowing for the application of cost-effective, thin reinforcement layers.
• Optimized holding forces due to the fiberglass-reinforced plastic (GFRP) nail.
• Low embedment depth of 35 mm saves drilling time.
• The GFRP nail ensures that the anchor is free of thermal bridges with a Chi value of 0.000 [W/K].
• The compression zone in the shaft allows for precise plate insertion into the insulation for insulation thicknesses up to 180 mm.

Application:

• Installation of ETICS insulation boards on concrete and masonry.
• Flush mounting in ETICS insulation materials, e.g., polystyrene.

Building materials:

• Building material classes A, B, C, D, E
• Concrete
• Masonry bricks
• Calcium silicate solid bricks
• Hollow blocks made of lightweight concrete
• High-hole bricks
• Calcium silicate hollow bricks
• Lightweight aggregate concrete
• Aerated concrete

Functionality:

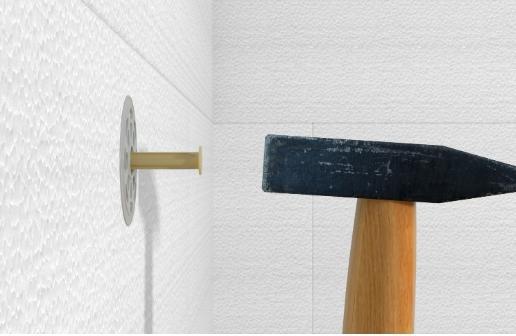

The anchor is installed in a through-mounting method. Simple and quick installation by hammering in the GFRP nail with a standard hammer. Non-load-bearing layers such as adhesives and old plaster are included in the maximum usable length.
