Festo T-Connector 12mm

CHF2.77/1pcs.
Ratings
Delivered between Sat, 28.6. and Fri, 11.7.
6 items in stock at supplier

Product details

Pipe connection A = Push-in installation 12 mm
Pipe connection B = Push-in installation 12 mm
Branch pipe connector = Push-in installation 12 mm
Housing material = Brass
Surface = Nickel-plated
Max operating pressure = 20 bar
Chemical resistant = Yes
Pipe connection B - Type = Push-in
Pipe connection A - Pipe size = 12 mm
Pipe connection B - Pipe size = 12 mm
Branch pipe connector - Pipe size = 12 mm
Min operating temperature = 0 °C
Branch pipe connector - Type = Push-in
Pipe connection A - Type = Push-in

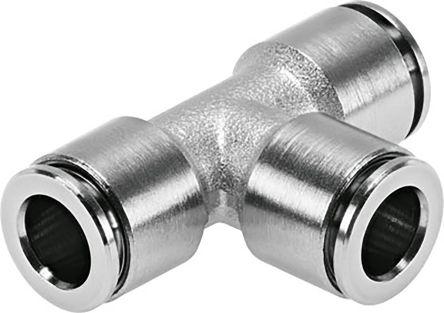

NPQH-T connectors for push-in installation. The NPQH series T-connectors from Festo, designed for easy pipe connection, provide a reliable seal. They feature a compact design and are ideal for pneumatic applications with a temperature range of up to 150 °C and a pressure range of up to 20 bar. The NPQH series is a full metal push-in fitting made of chemically nickel-plated brass, which is safe for use in the food industry. It offers high corrosion resistance (CRC3) and chemical resistance. Features and benefits: quick and easy pipe insertion, solid metal design, high temperature resistance, resistant to cleaning agents, FDA compliant, high nominal pressure.

Key specifications

Metal type
Brass
Items per sales unit
10 x
Item number
10310546

General information

Manufacturer
Festo
Category
Screw accessories
Manufacturer no.
NPQH-T-Q12-E-P10
Release date
15.1.2019
External links
Manufacturer's site (de)

Material

Material group
Metal
Metal type
Brass
Material
Brass

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
10 x

Product dimensions

Length
151 mm
Outside diameter
12 mm
