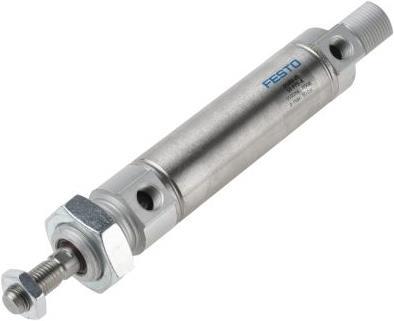

Festo Round cylinder

Design: Double. Bars: One. Bore: 25 mm. Stroke: 50 mm. Max. operating pressure: 10 bar. Force at 7 bar: 247 N (retract) at 6 bar, 295 N (extend) at 6 bar. End position damping: Air. Connection: G1/8. Dimensions: 27 mm (diameter) x 191.5 mm. Max. operating temperature: +80 °C. Operating temperature min.: -20 °C. Round profile cylinder of the DSNU series - self-adjusting pneumatic cushioning. The Festo round profile pneumatic cylinder of the DSNU series offers excellent running performance and a long service life. With a stainless steel piston rod and male and female thread options. A wide range of accessories allows the DSNU cylinders to be installed virtually anywhere. Self-adjusting cushioning ensures ideal cushioning performance without the need for manual adjustments. Self-adjusting damping ensures a smooth and dynamic travel to the end position, even when loads and speeds change. Features and benefits: ISO 6432 stainless steel piston rod. Wide range of variants. Long service life. Double-acting. Application information: These cylinders with self-adjusting cushioning are equipped with a special piston as an extension of the main piston. This design controls the bleeding of the air cushion that has built up so that no adjusting screw is required. Assembly and adjustment time are reduced by the self-adjusting cushioning, resulting in high potential savings in labour time.
