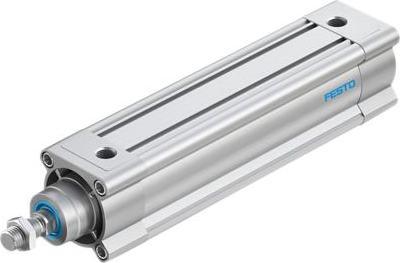

Festo ISO Cylinder 63mm Bore, 200mm Stroke

Manufacturer Series: DSBC
Execution: Double-acting
Rod: One
Bore: 63 mm
Stroke: 200 mm
VDMA Standard: 24562
ISO Standard: 15552
Max Operating Pressure: 12 bar
End Position Damping: Air
Connection: G3/8
Dimensions: 393.1 x 75 x 75 mm
Weight: 1.7 kg
Min Operating Temperature: -20 °C

Profile cylinder of the DSBC series – self-adjusting pneumatic damping. The Festo profile pneumatic cylinder of the DSBC series offers excellent performance and long service life. It features a stainless steel piston rod with external and internal thread options. A wide range of accessories allows for the installation of DSBC cylinders practically anywhere. Self-adjusting damping. Self-adjusting, damping PPS cylinders provide ideal damping performance without the need for manual adjustments. The self-adjusting damping ensures a smooth and dynamic movement to the end position even with varying loads and speeds.

Features and Benefits:

• ISO 15552
• Stainless steel piston rod
• Variety of variants
• Long service life
• Double-acting

Application Information: These cylinders with self-adjusting damping are equipped with a special piston as an extension of the main piston. This design controls the venting of the air cushion that has built up. Therefore, no adjustment screw is required. Assembly and adjustment time is reduced through the self-adjusting damping, resulting in significant savings in working time.
