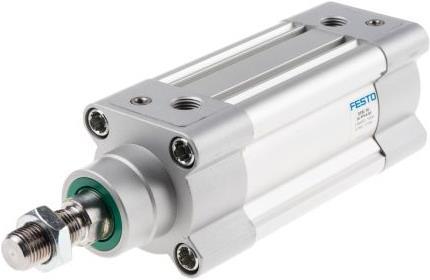

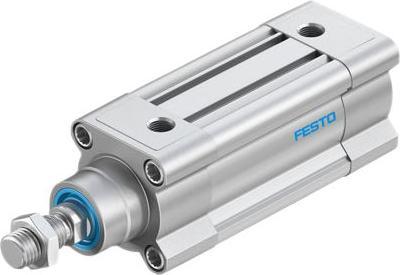

Festo ISO Cylinder 50mm Bore, 50mm Stroke

Manufacturer Series: DSBC
Execution: Double-acting
Rod: One
Bore: 50mm
Stroke: 50mm
VDMA Standard: 24562
ISO Standard: 15552
Max Operating Pressure: 12 bar
End Position Damping: Air
Connection: G1/4
Dimensions: 227.8 x 64 x 64mm
Weight: 1.2kg
Max Operating Temperature: +80°C

Profile cylinder series DSBC – adjustable pneumatic damping. The Festo profile pneumatic cylinder of the DSBC series offers excellent performance and long service life. It features a stainless steel piston rod with external and internal thread options. A wide range of accessories allows for the installation of DSBC cylinders practically anywhere. Adjustable pneumatic damping. Cylinders of type PPV with adjustable damping absorb energy at the end positions through the targeted buildup and release of an air cushion. This allows for a high level of energy absorption while simultaneously reducing noise. The manual adjustment screw enables fine-tuning for specific applications.

Features and Benefits:

• ISO 15552
• Stainless steel piston rod
• Variety of variants
• Long service life
• Double-acting

Application Information:
The DSBC pneumatic cylinders with self-adjusting damping are equipped with a special damping piston as an extension of the main piston. This relatively long damping piston builds up an air cushion in the connection cap before the end position. Through this energy-absorbing method, these cylinders are ideal for medium to heavy loads and high-speed applications.
