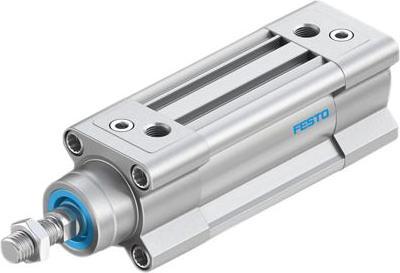

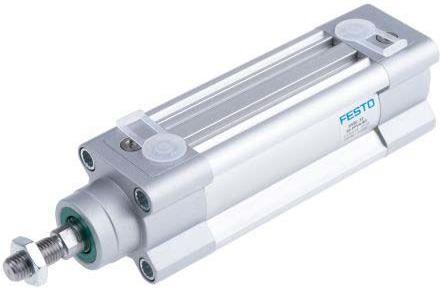

Festo ISO 15552 Cylinder 32-mm x 30-mm

Delivered between Fri, 20.6. and Wed, 2.7.
8 items in stock at third-party supplier
Supplied by

Product details

Manufacturer series = DSBC
Execution = Double
Rods = One
Bore = 32mm
Stroke = 30mm
VDMA Standard = 24562
ISO Standard = 15552
Max. operating pressure = 12 bar
Force at 7 bar = 415 (Retracting) N, 483 (Advancing) N
End position cushioning = Air
Connection port = G1/8
Dimensions = 175.1 x 45 x 45mm
Weight = 465g
Height = 45mm

DSBC series profile cylinder - adjustable pneumatic cushioning. The Festo DSBC series profile pneumatic cylinder offers excellent running performance and long life. Features a stainless steel piston rod with male and female thread options. A wide range of accessories allows DSBC cylinders to be installed virtually anywhere. Adjustable pneumatic cushioning. Type PPV cylinders with adjustable cushioning absorb energy in the end positions by selectively building up and releasing a cushion of air. This allows a high level of energy absorption while reducing noise. The manual adjustment screw allows fine adjustments for the specific application. Features and benefits. ISO 15552 stainless steel piston rod Wide range of variants Long service life Double-acting. Application Information. DSBC pneumatic cylinders with self-adjusting cushioning are equipped with a special cushioning piston as an extension of the main piston. This relatively long damping piston builds up an air cushion in the connection cap before the end position. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Key specifications

Lifting height
0.03 m
Material
Aluminium
Item number
10310952

General information

Manufacturer
Festo
Category
Conveyor technique
Manufacturer no.
DSBC-32-30-PPVA-N3
Release date
15.1.2019
External links

Material

Material group
Metal
Material
Aluminium
Roll material
Steel

Conveyor system properties

Lifting height
0.03 m
Mounting hole
32 mm
Frame material
Aluminium
Main Hub
0.02 m/min

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
18 cm
Width
4.50 cm
Height
4.50 cm
