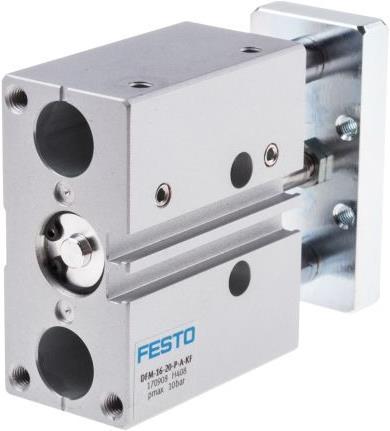

Festo Compact Guided Cylinder 16mm x 20mm

Manufacturer series: DFM
Design: Double
Rods: One
Bore: 16mm
Stroke: 20mm
Max. operating pressure: 10 bar
Force at 7 bar: 121 N (Extend) @ 6 bar, 90 N (Retract) @ 6 bar
Connection: M5
Dimensions: 70 x 67 x 32mm
Weight: 481g
Operating temperature max: +60°C
Length: 70mm
Height: 32mm

Compact DFM guide cylinder. Festo DFM guide cylinders are available in various sizes to suit many applications. The robust and precise design is maintenance-free and highly resistant to torque and lateral external forces. DFM Series guide actuators feature flexible cushioning plates for quiet operation and extended life. Fully integrated mounting for proximity sensors and a choice of supply port locations. DFM guide cylinders are available with plain bearing or rotating ball bearing guides. Plain bearing units feature two large guide rods and four plain bearings for excellent lateral forces. Rotating ball bearing units are ideal for applications where torque loads are present.

Features and benefits:

• Drive and guide unit in a single housing
• Robust design
• High resistance to torque and lateral forces
• Maintenance-free
• Flexible damping plates reduce noise levels during operation and increase product life.
