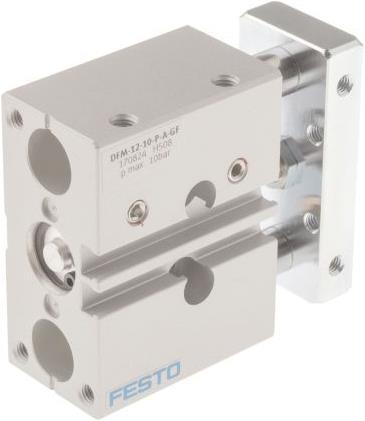

Festo Compact Guided Cylinder 12mm x 10mm

Manufacturer series: DFM
Version: Double
Rods: One
Bore: 12mm
Stroke: 10mm
Working pressure max: 10 bar
Force at 7 bar: 51 N (retract) @ 6 bar, 68 N (extend) @ 6 bar
Connector: M5
Dimensions: 59 x 60 x 28mm
Weight: 338g
Operating temperature max: +80°C
Length: 59mm
Height: 28mm

Compact DFM guide cylinders. Festo DFM guide cylinders are available in various sizes, suitable for many applications. The robust and precise design is maintenance-free and highly resistant to torque and lateral external forces. DFM Series guide actuators feature flexible cushioning plates for quiet operation and extended life. Fully integrated mounting for proximity sensors and a choice of supply port locations.

Guide variations: DFM guide cylinders are available with plain bearing or rotating ball bearing guides. Plain bearing units feature two large guide rods and four plain bearings for excellent lateral forces. Rotating ball bearing units are ideal for applications where torque loads are present.

Features and benefits: Drive and guide unit in a single housing, rugged construction, high resistance to torque and lateral forces, maintenance-free, flexible damping plates reduce noise levels during operation and increase product life.
