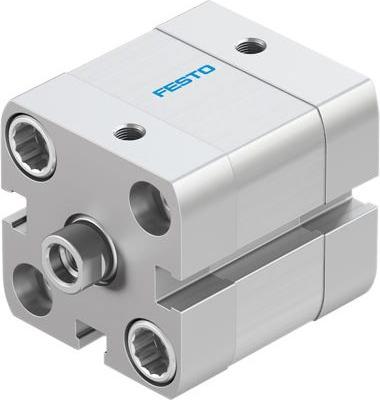

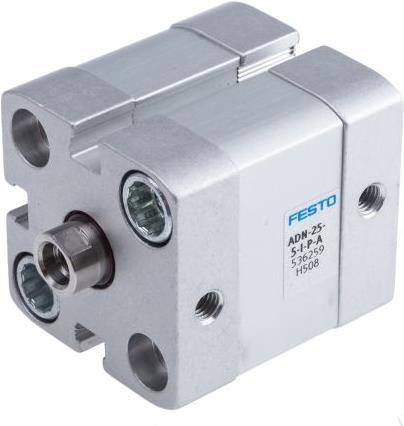

Festo Compact Double Acting Cylinder 25x5 mm

Stroke = 5mm
Bore = 25mm
Design = Double
Manufacturer series = ADN
Rods = One
Force at 7 bar = 247 (Retract) N @ 6 bar, 295 (Extend) N @ 6 bar
Connection = M5
Dimensions = 39.5 x 39.5 x 49.5mm
Length = 49.5mm
Width = 39.5mm
Height = 39.5mm
Operating temperature max = +80°C

ISO-21287 cylinders - flexible cushioning. Compact FESTO ADN series pneumatic cylinders comply with ISO 21287 and are up to 50% smaller than standard ISO 15552 cylinders. The pistons are magnetic and the housing has integrated slots for the proximity switch for non-contact position detection. The cylinders feature flexible polymer end cushioning to reduce noise and vibration, extend service life, and increase production and productivity... Features and Benefits. Complies with ISO 21287 slots for flush mounting of proximity sensors Choice of 12 mm to 40 mm bore sizes Low friction damping design requires no adjustment. Scope of Application. ADN compact cylinders are suitable for a wide range of pneumatic applications with small loads, low speeds, requiring low damping capacity.
