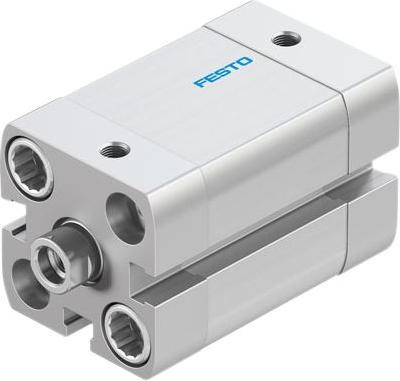

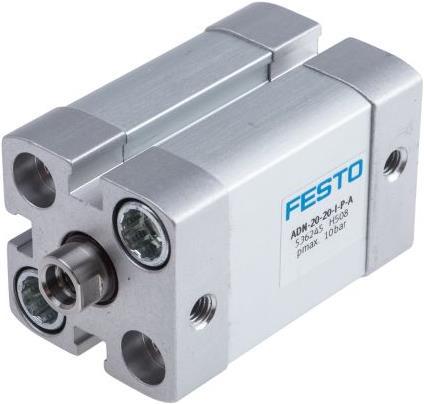

Festo Compact Double Acting Cylinder 20x20 mm

Stroke: 20mm
Bore: 20mm
Design: Double
Manufacturer Series: ADN
Force at 7 bar: 141 N (Retract) @ 6 bar, 188 N (Extend) @ 6 bar
Connection: M5
Dimensions: 35.5 x 35.5 x 62.5mm
Length: 62.5mm
Width: 35.5mm
Operating pressure max: 10 bar
Operating temperature max: +80°C

The pneumatic cylinder ADN ISO 21287 features flexible cushioning. The FESTO ADN series compact pneumatic cylinders are up to 50% smaller than standard pneumatic cylinders, maximizing productivity in limited spaces. These double-acting pneumatic actuators have two ports for compressed air to extend and retract the piston rod. The ADN series offers a wide range of stroke lengths and bore sizes, suitable for various applications.

The ADN Series is a double-acting actuator where air is applied to extend and retract the piston in a linear motion to the desired stroke length. Magnetic piston rods provide non-contact position sensing via a proximity sensor mounted in slots along the cylinder body. Cylinders feature flexible polymer end cushioning to reduce noise and vibration, extend service life, and enhance production and productivity.

Features and benefits include compliance with the ISO 21287 standard, slots for flush mounting of proximity sensors, low friction for durable operation, and cushioning that requires no adjustment, saving time and cost.

ADN Series pneumatic actuators can be mounted horizontally or vertically to suit the application. Optional mounting accessories provide additional flexibility, allowing the cylinder to be mounted with a swivel mount for free movement, a foot mount for support with heavy loads, or in combination with other actuators for even more mobility.
