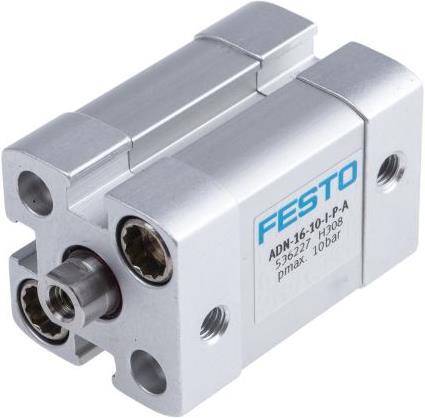

Festo Compact Double Acting Cylinder 16x10 mm

Hub = 10 mm
Bore = 16 mm
Design = Double
Manufacturer Series = ADN
Rod = Single
Force at 7 bar = 121 (Extend) N @ 6 bar, 90 (Retract) N @ 6 bar
Connection = M5
Dimensions = 29 x 29 x 49.7 mm
Length = 49.7 mm
Width = 29 mm
Height = 29 mm
Max Operating Temperature = +80 °C

ISO-21287 Cylinder – flexible cushioning. Compact FESTO pneumatic cylinders from the ADN series meet ISO 21287 and are up to 50% smaller than standard ISO 15552 cylinders. The pistons are magnetic, and the housing features integrated slots for proximity switches for contactless position detection. The cylinders are equipped with flexible polymer end cushioning to reduce noise and vibrations, extend service life, and enhance production and productivity. Features and benefits: Complies with ISO 21287, slots for flush mounting of proximity sensors, selection of bore sizes from 12 mm to 40 mm, low-friction design, cushioning requires no adjustment. Application range: ADN compact cylinders are suitable for a variety of pneumatic applications with small loads and low speeds that require minimal cushioning capacity.
