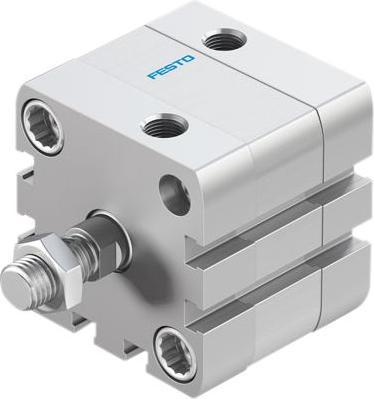

Festo ADN Compact Cyl 40mm Bore 5mm Stroke

Hub = 5mm
Bore = 40mm
Execution = Double
Manufacturer Series = ADN
Rods = One
Connection = G1/8
Dimensions = 54.5 x 54.5 x 56.1mm
Length = 56.1mm
Width = 54.5mm
Height = 54.5mm
Max Operating Temperature = +80°C

ISO-21287 Cylinder – flexible damping. Compact FESTO pneumatic cylinders from the ADN series meet ISO 21287 and are up to 50% smaller than standard ISO 15552 cylinders. The pistons are magnetic, and the housing features integrated slots for proximity switches for contactless position detection. The cylinders are equipped with flexible polymer end damping to reduce noise and vibrations, extend lifespan, and enhance production and productivity. Features and benefits: Complies with ISO 21287, slots for flush mounting of proximity sensors, selection of bore sizes from 12mm to 40mm, low-friction design, damping requires no adjustment. Application area: ADN compact cylinders are suitable for a variety of pneumatic applications with small loads and low speeds that require low damping capacity.
