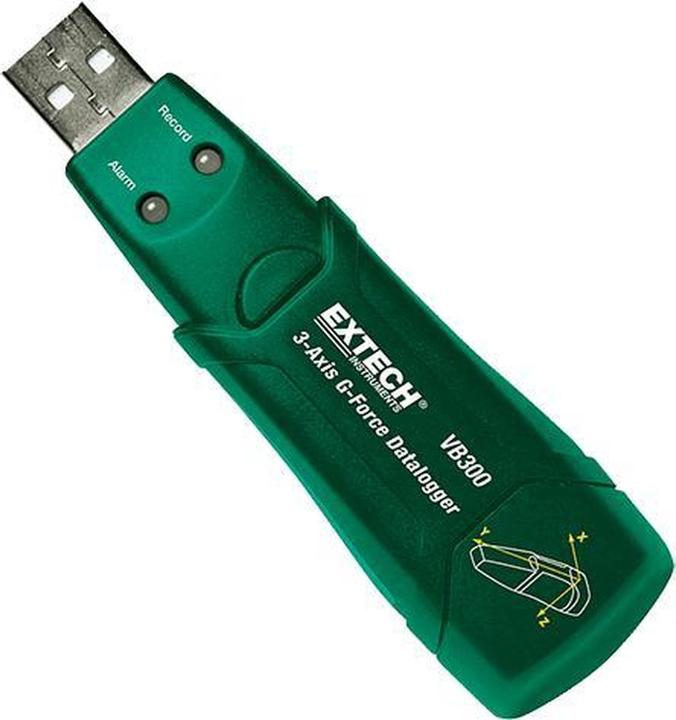

Extech Accelerometer VB300

The VB300 data logger reliably captures shock, vibration, and acceleration measurements over a measurement range of ±18 G (gravity). The logger records the acceleration forces from 3 axes (X/Y/Z) and the peak values that occur. All data is timestamped to allow for clear evaluation. Error states, incorrect transport conditions, etc., can thus be reliably documented. The logging interval (recording speed), threshold alarm (Max/Min), and start mode can be easily configured on a computer.

The stored data can be easily read by connecting the VB300 to a computer's USB port and analyzed and processed with the software. The measurement data can be graphically displayed, printed, and exported for use with other applications, such as word processing and spreadsheet programs.

The data logger is equipped with a lithium long-life battery for up to 1000 hours of autonomous operation. The VB300 uses a 4 MB flash memory, allowing for the recording of 168,042 normal data points or 112,028 motion detection data points per axis.
