Evolution magnetic foot drill S28 MAG Heavy Duty (EVO-EVOS28)

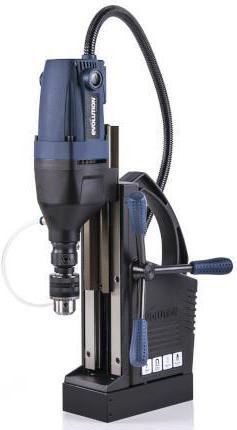

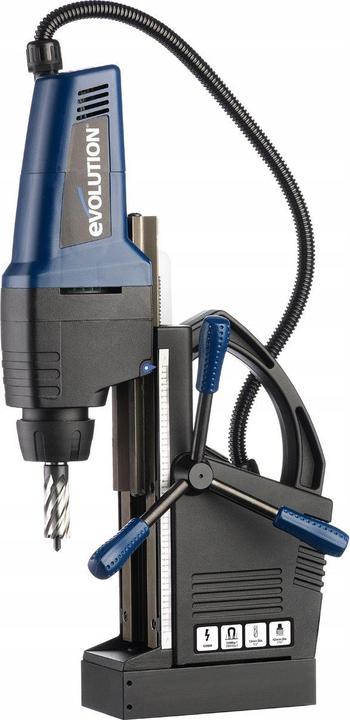

The drill with magnetic base from the English company Evolution Power Tools – model EVO42 – is a perfect combination of modern design, high quality, and ergonomics. With the EVO42 drill, you can drill holes with a diameter of 42 mm using core drills. With the HTA47 adapter and the chuck attachment, we can drill holes in metal up to a diameter of 13 mm using twist drills. The integrated cooling system ensures optimal operating parameters for the device. The EVO42 is a lightweight and comfortable drill that makes it easier for the operator to work at heights – on steel structures. The strong pulling force of the magnetic base provides comfort when drilling steel elements starting from 10 mm thickness.

Technical specifications:
Model: EVO42
Motor power: 1200 W
Supply voltage: 230 V
Drilling diameter with core drill: 42 mm
Drilling diameter with twist drill: 13 mm
Stroke: 0 - 30 mm
Clamping force: 15000 N
Length: 180 mm
Width: 320 mm
Minimum drill height: 340 mm
Maximum drill bit height: 580 mm
Working stroke: 240 mm
Magnetic base size (L x W x H): 40 x 90 x 180 mm
No-load speed 1st gear: 450 RPM
Mounting type: fi 12-60 Weldon 19.05 mm (3/4")
Drilling depth with core drill: 50 mm
Machine weight: 10.9 kg
Weight with packaging (gross): 16.2 kg
Packaging dimensions (L x W x H): 570 x 470 x 200 mm

Scope of delivery:
1 x Drill with Evolution magnetic base EVO42,
1 x Coolant tank,
1 x Coolant pipe,
1 x Drill guard,
1 x 2 mm wrench,
1 x 3 mm wrench,
3 x Handle,
2 x Spring washer,
1 x Seat belt,
1 x Sturdy ABS carrying case.
