Eutonomy euFIX/Adapter DIN for Fibaro FGS-224 Smart Module Double

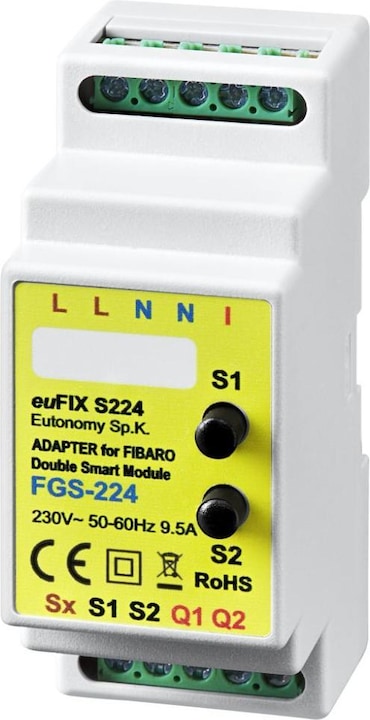

The euFIX S224 adapter is used for the installation of the Fibaro Switch FGS-224 module on a DIN TH35 type rail in the distribution box.

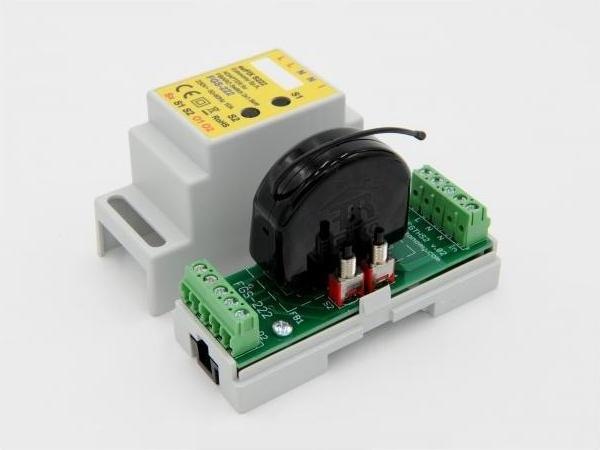

It consists of a housing and an electronic board, on which the FGS-224 is mounted. The dimensions are suitable for installation on a standard DIN TH35/TS35 rail.

The electronic board includes a terminal set with screws, allowing all cables (power supply, input and output signals, control buttons) to be securely attached.

The front panel of the housing features two microswitches for diagnostics S1 and S2, which can be used for controlling the module, registering the module in the Z-Wave system, or for removing the module from the system without opening the adapter.

The Fibaro module is not included and must be purchased separately.

Functions

• Adapter used for the installation of the Fibaro Switch FGS-224 module on a DIN TH35/TS35 type rail in the distribution box
• Free space on the sticker to label the controlled line
• Micro push buttons S1 and S2 used for controlling, including or excluding the module in the Z-Wave system

Technical specifications

• Supply voltage: 230 V AC +/- 10 %, 50-60 Hz
• Load power: max 8 A
• Dimensions: 34.8 x 87.3 x 64.7 mm
• Width in TE units: 2 TE modules
• Wire conductor diameter: max. 2.5 mm²
• Maximum length of wires connected to inputs Sx, S1, S2: 20 m
• Operating temperature: 0 °C to +50 °C
• Relative humidity: ≤ 90 %, no condensation
• Directives:
• LVD 2014/35/EU
• RoHS 2011/65/EU.
