Eutonomy euFIX S223 DIN adapter

Ratings
BrandMore from Eutonomy
Delivered between Fri, 17.4. and Tue, 21.4.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

Product details

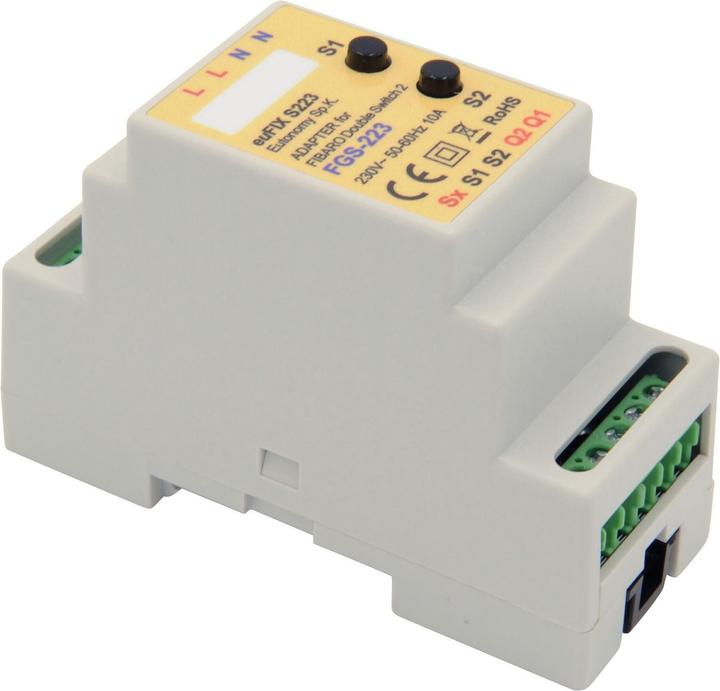

The euFIX S223 adapter is used for the installation of the Fibaro Switch FGS-223 module on a DIN TH35 type rail in the switch cabinet.

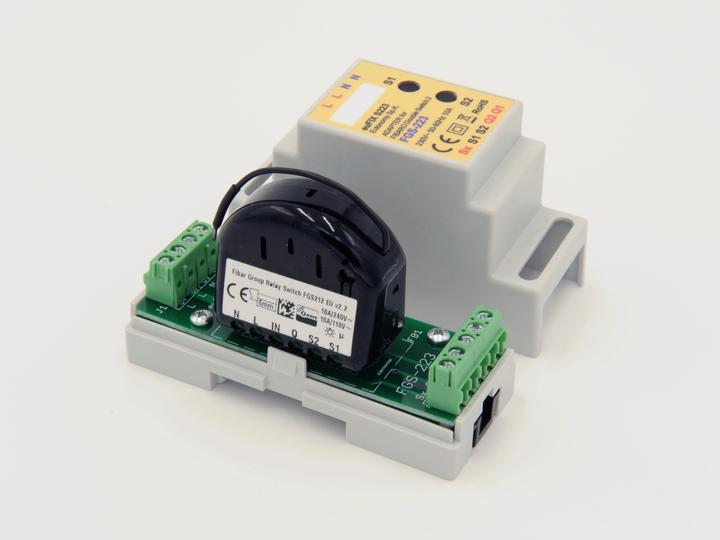

It consists of a housing and an electronic board on which the FGS-223 is mounted. The dimensions are suitable for installation on a standard DIN TH35/TS35 rail.

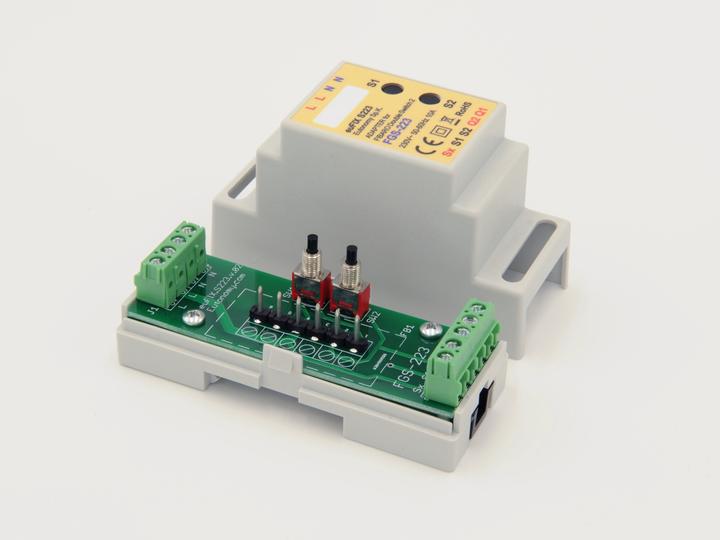

The electronic board includes a terminal set with screws, allowing all cables (power supply, input and output signals, control buttons) to be securely attached.

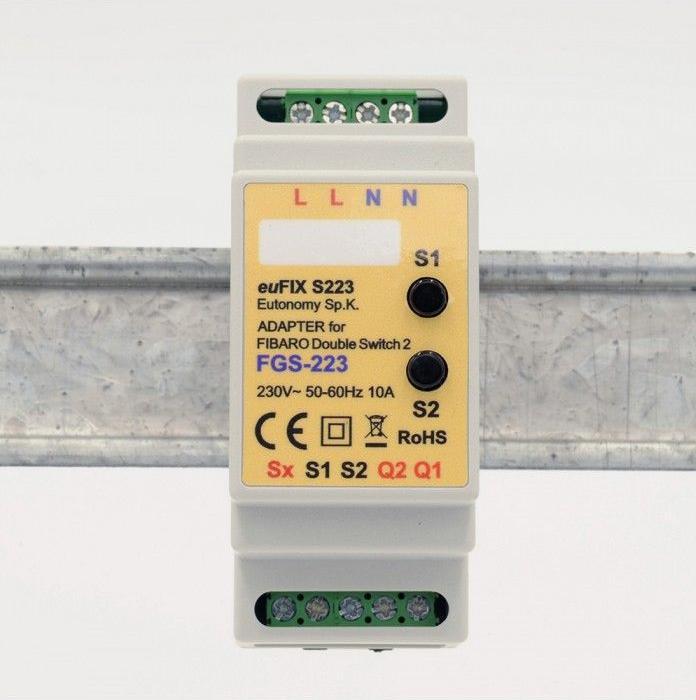

The front panel of the housing features two micro switches for diagnostics S1 and S2, which can be used for controlling the module, registering the module in the Z-Wave system, or removing the module from the system without opening the adapter.

The Fibaro module is not included and must be purchased separately.

Functions

  • Adapter used for the installation of the Fibaro Switch FGS-223 module on a DIN TH35/TS35 type rail in the switch cabinet
  • Free space on the sticker to label the controlled line
  • Micro push buttons S1 and S2 used for controlling, including, or excluding the module from the Z-Wave system

Technical Data

  • Supply voltage: 230 V AC +/- 10 %, 50-60 Hz
  • Load power: max 8 A
  • Dimensions: 34.8 x 87.3 x 64.7 mm
  • Width in TE units: 2 TE modules
  • Wire conductor diameter: max. 2.5 mm²
  • Maximum length of wires connected to inputs Sx, S1, S2: 20 m
  • Operating temperature: 0 °C to +50 °C
  • Relative humidity: ≤ 90 %, no condensation
  • Directives:
  • LVD 2014/35/EU
  • RoHS 2011/65/EU.

Key specifications

Protection type (IP code)
IP20
Width
34.80 mm
Height
64.70 mm

General information

Item number
10068585
Manufacturer
Eutonomy
Category
Wiring closet technology
Manufacturer no.
EUT_EUFIXS223
Release date
25.9.2018

Colour

Colour
White
Exact colour description
White, Yellow

Distribution cabinet technology Features

Nominal current
10 A
Protection type (IP code)
IP20
Nominal voltage
230 V
number of poles
4
Input voltage
230 V

Smart home features

Communication standard
Z-wave
Transmission type
Wi-Fi

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂ emissions
10.33 kg
Climate contribution
CHF 0.25

Product dimensions

Width
34.80 mm
Height
64.70 mm
Depth
87.30 mm

Package dimensions

Length
8 cm
Width
9 cm
Height
5.50 cm
Weight
90 g
