Product details

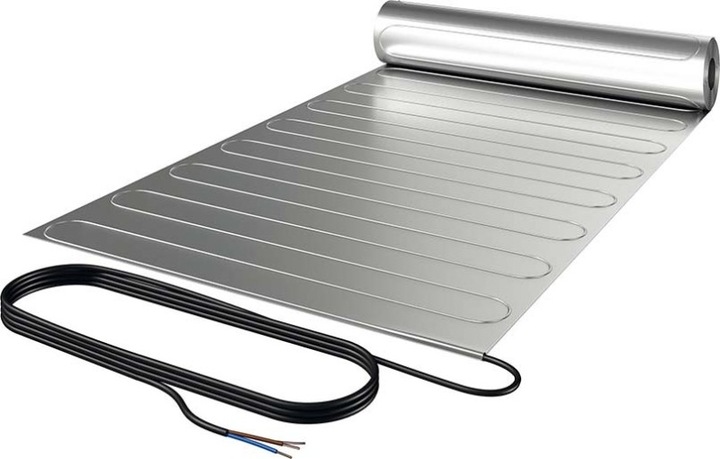

Etherma Dipole Heating Mat 122-LM5-400
Manufacturer: Etherma
Description: Dipole heating mat 50x400 cm, 240 W, 230 V
Type: 122-LM5-400
Version: other
With carrier mat: yes
Heating conductor fixation: glued
Self-adhesive: no
Connection voltage: 230 V
Connection power: 240 W
Power: 120 W/m²
Heating conductor load: 6 W/m
Resistance: 220 Ohm
Number of cold leads: 1
Length of cold leads: 5000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 2 m²
Length: 4000 mm
Width: 500 mm
Thickness: 1 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no
The Laminotherm heating mat LM is a factory-finished heating mat designed for tempering parquet, laminate, and cork floors, as well as for heating well-insulated rooms. The heating system is installed floating. The reinforced aluminum mesh ensures optimal heat distribution and prevents the formation of hot spots. The heating mat is low in electromagnetic interference, thanks to its 1.3 mm thin construction and is very easy to install due to its dipole design. The Laminotherm heating mat is available with a power output of 120 W/m². Nominal temperature: 90 °C, protective measure: RCD, protection circuit 30 mA, insulation of heating conductor: PFA, thickness of aluminum mesh: 1 mm, system construction: according to IEC 60335, CE compliant, test mark: SEMCO, protection class: IP X7, for use in dry rooms, connection cable: 5 m, 2x1.0 mm² protective braid. EAN: 9120061391402.
