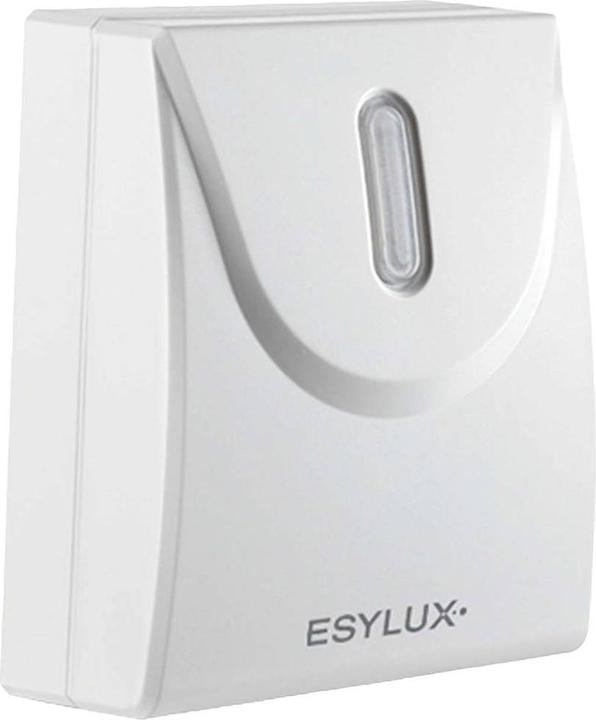

Esylux Twilight switch

ESYLUX Twilight switch DEFENSORTSIR1CIP55WH Manufacturer: ESYLUX Designation: Twilight switch white Type: DEFENSORTSIR1CIP55WH Design of sensor: Light sensor built-in Contacts: 1 NO Switch-on brightness: 2..500 lx Switch-off brightness: 2..500 lx Switch-off delay: 180 s Switch-on delay: 60 s Max. Switching capacity: 2300 W Suitable for C-load: yes With automatic night shut-off: yes Mounting type: Surface-mounted Pivoting: no Material: Plastic Material grade: Thermoplastic Halogen-free: no Surface protection: Untreated Surface finish: Matt Color: White RAL number (similar): 9003 Transparent: no Rated voltage: 240 V Max. switching current (ohmic load): 1.5 V Switching current (ohmic load): 10 A Operating temperature: -25..50 °C Suitable for Protection class (IP): IP55 Min. depth of device box: 46 mmESYLUX twilight switch DEFENSORTSIR1CIP55WH: more detailsDaylight-dependent switching of outdoor lighting. Password protection against unauthorized parameterization. Immediate operational readiness with factory settings. High overvoltage protection (Surge 2 kV, Burst 4 kV). Easy installation due to large wiring space and plug-in terminals up to 2.5 mm2. Through-wiring by double membrane cable entry also for ground cables with Ø 15 mm. Easy parameterization via ESY-Pen and ESY-App. Switching delay to avoid faulty switching due to only short-term, e.g. weather-related brightness changes. Zero-crossing circuit for relay-saving switching of LEDs. Pushbutton input. Pulse function. Special base for indoor and outdoor corner mounting as accessory. , EAN: 4015120025471
