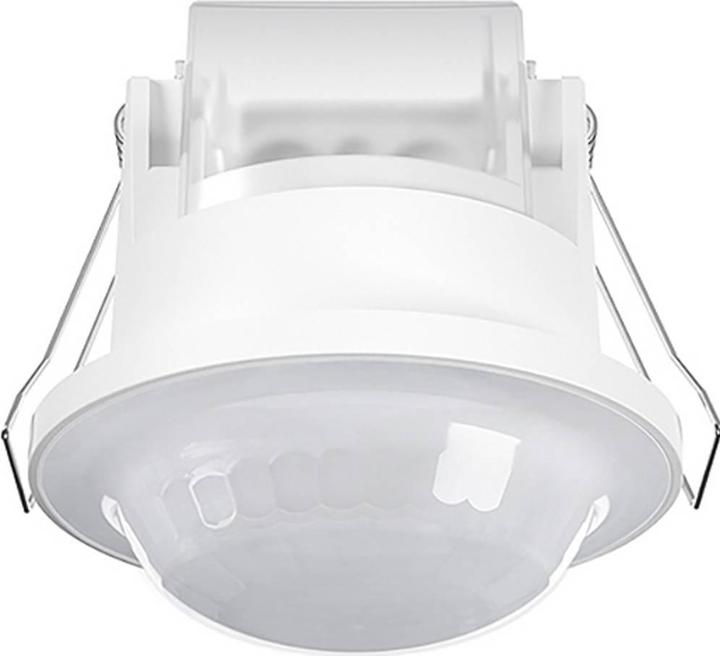

Esylux Motion detector

Esylux motion detector BASIC EXP#EB10431777

Manufacturer: Esylux
Designation: Motion detector
Type: BASIC EXP#EB10431777
Version: Motion detector
With DALI interface: No
Constant light control: No
Scan angle: 360°
Optimum mounting height: 2.5 m
Max. range to one side: 4 m
Max. presence area: 12.58 m²
Max. frontal range: 2.5 m
Detection field diameter on floor: 8 m
Remote control: Yes
Adjustable response brightness: Yes
Suitable for ceiling mounting: Yes
Suitable for wall mounting: No
Dimming function with dimming insert: No
Mounting type: Flush-mounted
Connection type: Plug-in terminal
Material: Plastic
Material quality: Thermoplastic
Colour: White
Protection class (IP): IP23
Voltage type: AC
Frequency: 50-60 Hz
Rated voltage: 230 V
Switch-off delay: 0 s
Switch-on delay: 30 s
Horizontal detection angle: 180-360°
Response brightness: 10-2000 lx
Suitable for C-load: Yes
Temperature: -25 to 50 °C
Max. inrush current: 78 A
Height: 79 mm
Diameter: 79 mm
Installation depth: 57 mm
Installation diameter: 62 mm
Compatible with Apple HomeKit: No
Min. depth of appliance box: 57 mm
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Esylux Basic motion detector EXP#EB10431777: More details
Motion detector with 360° detection angle for ceiling installation. Range of up to 8 m in diameter with a recommended mounting height of 2.5 m for use in small rooms and passageways with very little or no daylight. 10 A high-performance relay. Zero-crossing switching extends the service life of relays and lamps in electronic ballasts (e.g., fluorescent lights, LEDs) by gentle switching in zero-crossing mode. Factory setting for immediate operational readiness. Simple parameterization via remote control or with ESY-Pen and ESY-App. Automatic light control. Additional push-button input. Extension of the detection area through parallel connection. EAN: 4015120431777.
