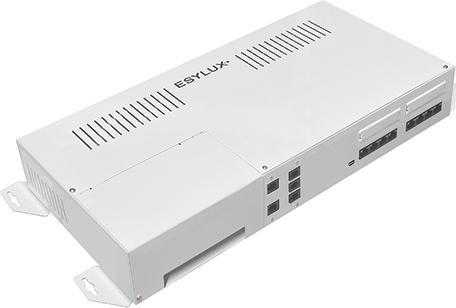

Esylux ETSE control unit

Esylux Controller Smartdriver SMARTDRI #EC10431425

Manufacturer: Esylux
Designation: Controller Smartdriver
Type: SMARTDRI #EC10431425
Version: Dynamic
Suitable for outdoor use: No
Type of control: Other
Number of colour channels: 1
Programmable: No
Housing: Metal housing
Construction: No
Installation: Yes
DIN rail mounting: No
Output voltage: 48 V
Input voltage: 230 V
Max. output current: 6.25 A
Protection class (IP): IP20
Protection class: I
Length: 555 mm
Width: 262 mm
Height: 85 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Esylux Smartdriver control unit #EC10431425: More details
ELC control unit (ELC = Esylux Light Control) with integrated constant light control for high energy efficiency. Plug-and-play connection of up to 8 ELC luminaires. Two push-button inputs for conventional push-buttons (230 V). Optional 8-way keypad (accessory) for manual override. Manual override and recall of scenes in four separate lighting channels. Quick plug-and-play connection of luminaires via RJ45 plug connections. Can be easily networked with other ELC control units via plug-in connection. Adjustable output current for connecting additional luminaire types. Expansion with DALI luminaires possible via integrated DALI bus outputs. Presence-dependent switching of HVAC via separately available DALI switch actuator (DALI switch).
EAN: 4015120431425.
