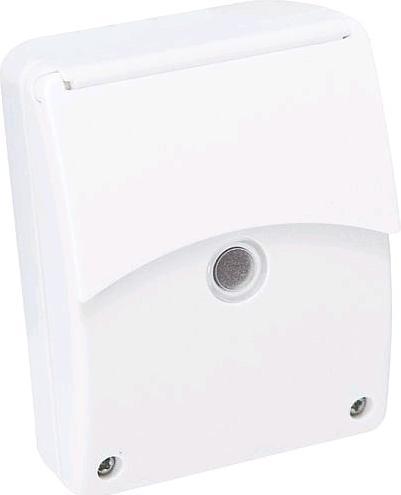

Esylux AP twilight switch

Esylux surface mounted twilight switch CDS-A/N

Manufacturer: Esylux
Designation: Surface mounted twilight switch
RAL color: 9010
Type: CDS-A/N
Design of sensor: Light sensor built-in
Contacts: 1 NO contact
Switch-on brightness: 5 to 300 lx
Switch-off brightness: 5 to 300 lx
Switch-off delay: 60 s
Switch-on delay: 60 s
Max. switching capacity: 2300 W
Suitable for C-load: No
With automatic night shut-off: No
Mounting type: Surface-mounted
Pivoting: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: No
Surface protection: Untreated
Finish: Matt
Color: White
Transparent: No
Rated voltage: 230 V
Max. switching current (ohmic load): 10 A
Operating temperature: -25 to 55 °C
Protection class (IP): IP54
Min. depth of device box: 0 mm

The Esylux surface mounted twilight switch is designed for automatic switching of lighting. It features a potential-free relay contact and allows for setting the light value from the outside. The LED setting aid provides a delay-free experience, and precise settings are ensured due to the new photodiode. It includes switch-on and switch-off delays and allows for double cable entry from below or through the rear wall of the housing. The plug-in terminals accommodate cables up to 2.5 mm² for quick and easy installation, and it has a large connection space. This switch is suitable for wall and inside corner mounting and is compatible with both old and new installations due to its exchangeable module. The housing is made of impact-resistant, UV-stabilized polycarbonate and features captive stainless steel screws.
