Enjoy solar Self-sufficient island system

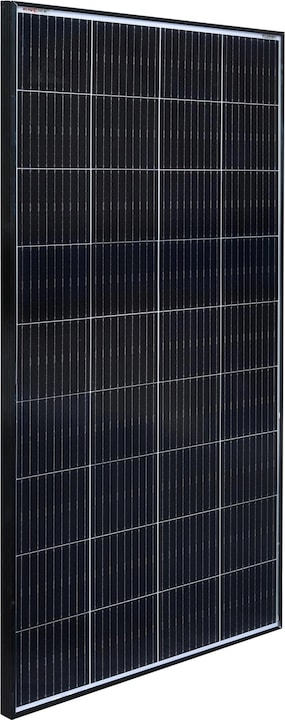

Solar Module:
Construction with 158.75 mm 9-busbar monocrystalline PERC cells.
Cell efficiency approximately 20%.
IP65 junction box with 90 cm long 4 mm² solar cable and solar connector.
Two integrated bypass diodes - minimized power loss in shading conditions.
TÜV certified according to standards IEC61215, IEC61730.
Surface made of tempered ESG solar glass with weather-resistant coating.
Unique frame made of anodized aluminum.

Charge Controller:
MPPT tracking efficiency over 99.5%.
Charging current 20A; system nominal voltage: 12/24VDC auto, max. PV open-circuit voltage 100V.
Advanced Display Unit (XDS2), integrated PV, battery, and load parameters.
Supported battery types: Lead-acid battery: AGM, GEL, Flooded, User; Lithium battery.

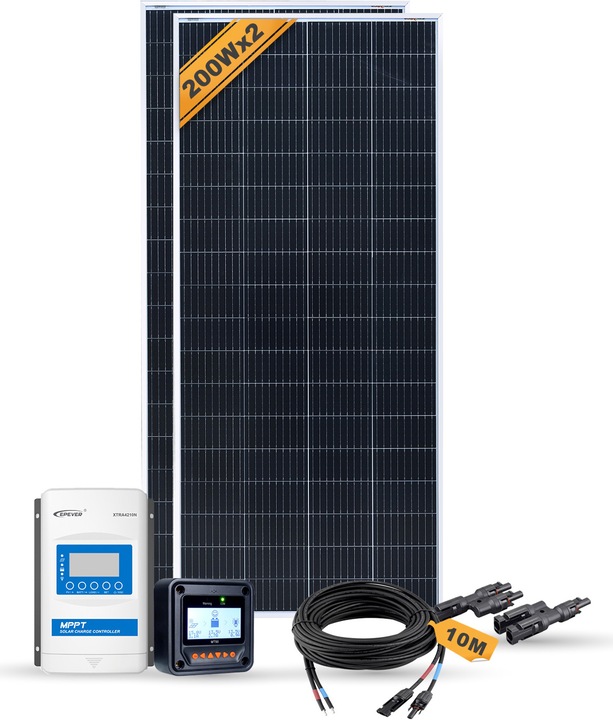

Scope of Delivery:
Monocrystalline solar module 200W 36V, 2 pcs.
Charge controller 40A, 1 pc.

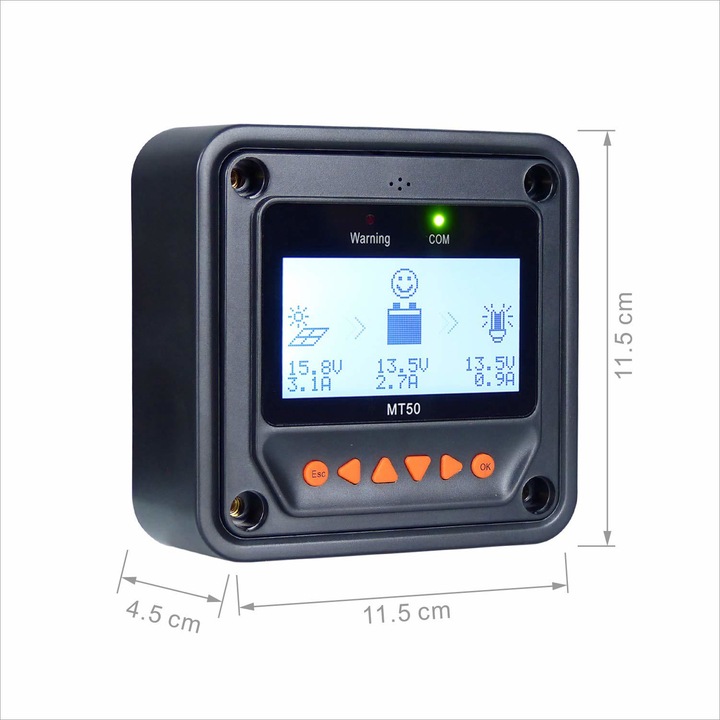

Display remote control, 1 pc.

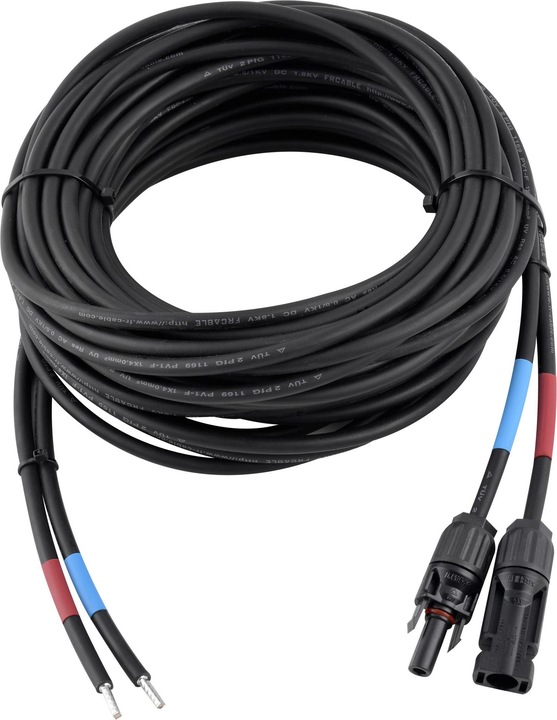

PV solar cable 6 mm² - 10 m, 1 pc.
Y-solar connector, 1 pc.
