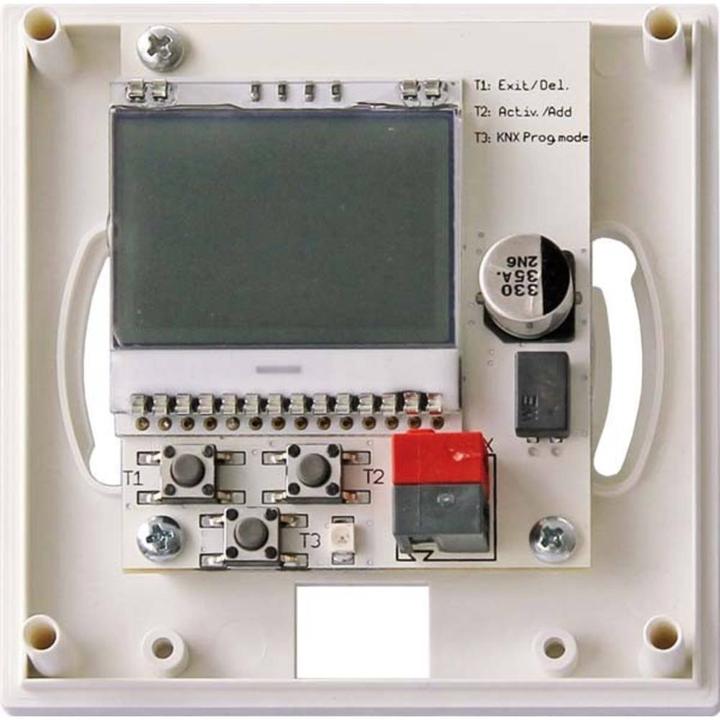

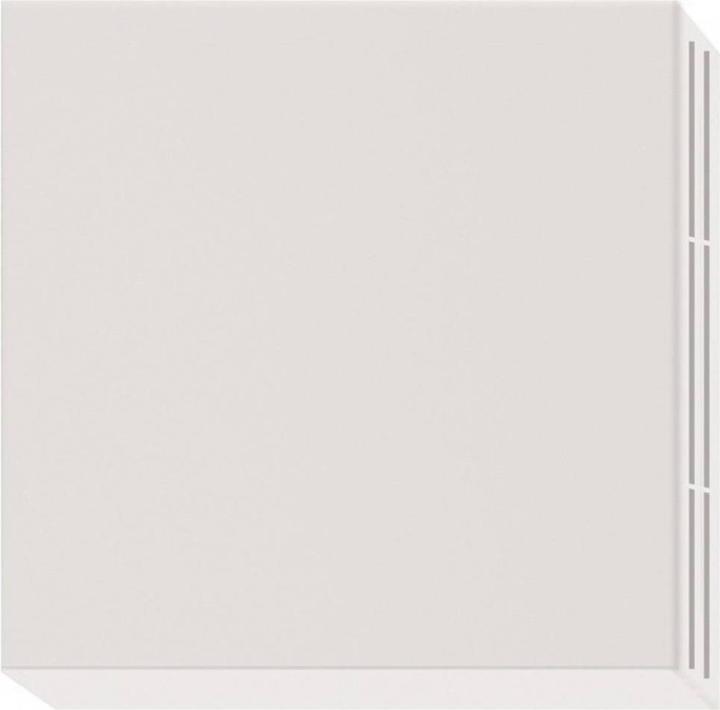

Eltako KNX ENO 636

Eltako EnOcean-KNX Gateway KNX ENO 636

Manufacturer: Eltako
Designation: EnOcean-KNX Gateway
Type: KNX ENO 636
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Surface-mounted
Length: 81 mm

The Eltako EnOcean-KNX Gateway KNX ENO 636 is a bidirectional gateway between EnOcean wireless and KNX bus with 32 channels and dimensions of 81x81x25 mm. The device is designed to transmit commands and measured values from EnOcean wireless sensors to the KNX bus, for example, to control KNX actuators. Likewise, EnOcean wireless actuators can be controlled via KNX.

The KNX ENO 636 supports encrypted wireless communication with security-capable EnOcean devices. With its 32 wireless channels, it supports over 100 device profiles (EEP: EnOcean Equipment Profile) and enables the easy and secure connection of various EnOcean sensors and actuators to KNX installations.

Additionally, the gateway offers logic and control functions and includes an optional 1-level wireless repeater that can bridge greater distances between sensors and actuators. Configuration is done using the KNX ENO tool. The installation is surface-mounted above a 55 mm flush-mounted box. Power supply is provided via the KNX bus.

EAN: 4010312318904.
