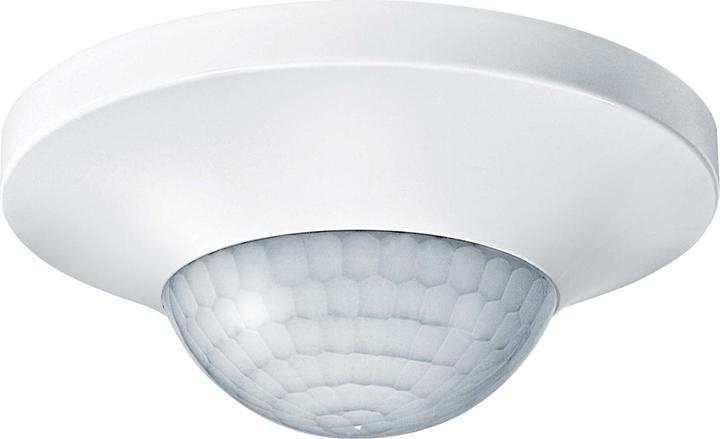

ELSO IR presence detector

Presence detector for ceiling mounting indoors. The sensor module detects moving heat sources (e.g., people) within an adjustable detection range and activates a stair lighting duration. It is suitable for resistive, inductive, and capacitive loads such as incandescent lamps, energy-saving lamps, low-voltage halogen lighting with conventional transformers, electronic transformers, and fluorescent lamps. The sensor module features a light sensor with an adjustable brightness threshold, ensuring that the lighting only turns on below a certain brightness level. Thanks to the presence function, the sensor module can turn off the lighting even when people are present if there is sufficient natural light.

Designed for installation in a 60mm flush-mounted box or in the surface-mounted housing available as an accessory. With claw and screw fastening as well as screw terminals. Functions: Switching of one output. External control via a PL input (sensor module for central unit use, additional unit Plus). Brightness-dependent stair lighting function.

Rated voltage: AC 220/230 V, 50/60 Hz. Rated current: max. 10 AX, cos Phi 0.6. Outputs: 1x normally open contact. Max. switching power per channel: Incandescent lamps: 2200 W, HV halogen lamps: 2000 W, low-voltage halogen lamps with wound transformer: 500 VA, electronic transformers: 1050 W, capacitive load: 10 A, 140 uF, energy-saving lamps: 100 VA, motor load: 1000 VA. Neutral conductor required (3-wire system). Connection cross-section: max. 2x2.5 mm².

Detection angle: 360 degrees. Number of levels: 6. Number of zones: 136. Number of motion sensors: 4. Recommended mounting height: 2.5 m. Range: Radius of max. 7 m (at a mounting height of 2.50 m). Sensitivity: infinitely adjustable. Brightness threshold: infinitely adjustable from approx. 10 to approx. 1000 Lux. Delay time: Channel 1: infinitely adjustable from approx. 10 s to approx. 30 min. Color: polar white.
