Elmag - Wolframelektroden-Anschleifgerät TURBO-SHARP X

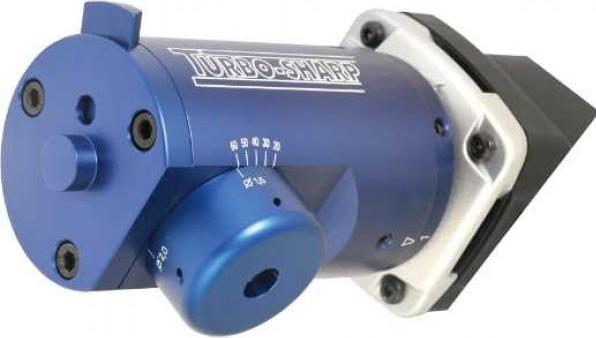

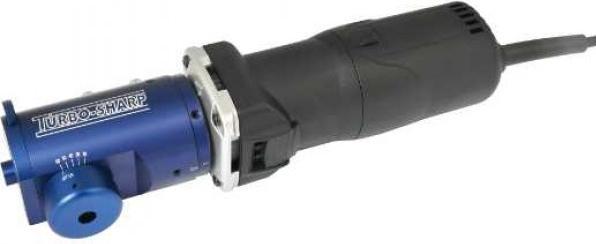

Wolfram Electrode Grinding Machine Turbo-Sharp X - Elmag Extra Sharp: Turbo-Sharp® X. The precision of the electrode grinding significantly influences arc stability and penetration depth. The Turbo-Sharp® X grinding machine allows for the quick production of precise electrode tips and contributes to improved welding quality.

Uniform longitudinal grinding for a stable arc - Diamond cone grinding with fine longitudinal grooves and flat grinding for new and dirty electrodes - Special guiding elements for infinitely adjustable cone grinding angles of 20 - 60° - High grinding speed of up to 27,000 RPM - Very high repeat accuracy - Compact, lightweight handheld device - Includes mounting bracket for stationary use on a vice.

Safe grinding process - Connectable to a dust extraction system - Encapsulated device housing prevents inhalation of hazardous carcinogenic grinding dust and its release into the environment.

Diamond grinding wheel usable six times - Double-sided coated diamond grinding wheel - Grinding head adjustment for sixfold use - High service life, very economical.

Included in the set:

• Turbo-Sharp X grinding machine
• Standard grinding head for 1.6/2.0/2.4/3.2 mm tungsten electrodes
• Multifunction cover with guiding element
• Double-sided coated diamond grinding wheel, sixfold usable
• Mounting bracket for stationary use
• Dust extraction nozzle for extraction system
• Spannfix clamping holder size L
• Mounting tools
• Turbo-Sharp X system case.

Technical specifications:
Grinding angle, infinitely adjustable: 20 - 60°
Grinding wheel diameter: 40 mm
Collet diameter: 6 mm
Neck diameter: 43 mm
Motor power: 500 W
Current: 2300 mA
Power connection / phases: 230 / 1 V / ~
Mains frequency: 50 Hz
Connection plug: Schuko
Weight: 1.98 kg
Customs tariff number: 84672959
Country of origin: DE
Parcel service capable: Yes.
