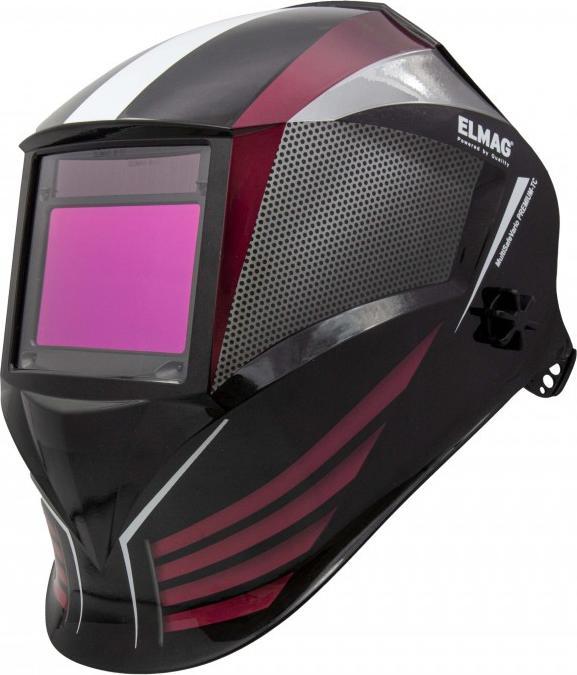

Elmag PREMIUM-TC' automatic head welding shield

True color anti-glare cassette for true color perception during welding.

Field of vision size: 100 x 65 mm.

Top marks for EN classification: 1/1/1/1.

Low switching time of only 0.033 ms.

Two continuously adjustable protection level ranges, internally adjustable from 4-8 or 9-13.

Internal adjustable delay/brightening delay ensures that the anti-glare cassette remains sufficiently closed after the light base is switched off to prevent the eyes from being blinded by the afterglow of the welding seam.

Internal adjustable sensitivity for optimum response, even in the low ampere range.

Replaceable back-up battery (1 CR2450).

Test button for checking the function.

Suitable for overhead and constrained position welding.

Optional dioptre disc inserts available.

Low weight of only 460 g for optimum wearing comfort.

Examples of use:

• From as little as 3 amps
• MMA/E-hand/SMAW
• MIG/MAG/GMAW
• Filling wire
• TIG/TIG/GTAW
• Plasma welding
• Microplasma welding
• Plasma cutting & gas welding
• Grinding

Technical data:

Anti-glare filter: True color.

Field of vision size: 100 x 65 mm.

Classification according to EN 379: 1/1/1/1.

Light sensors: 4.

Solar technology: Yes.

Power supply: Solar cells.

Back-up battery: Yes.

Grinding mode: Yes.

Battery status indicator: Yes.

Protection level setting DIN EN 4/9-13: Stepless.

Protection level setting sensitivity: Stepless.

Protection level darkening max: DIN 8 or 13.

Switch-on time at 22 °C: 0.000033 s.

Brightening time short/medium/long: 0.3 ~ 0.9 s.

Protection level bright: DIN 4.

Protection level darkened min. UV permanent: DIN 16.

Infrared protection IR permanent: DIN 16.

Operating temperature: -5 to +55 °C.

Storage temperature: -20 to +70 °C.

Cassette size: 156 x 158 x 9 mm.

Weight: 0.46 kg.

Scope of delivery:
1x automatic head welding shield 'Premium-Tc' MultiSafeVario,
3x outer cover discs,
1x inner cover disc.
