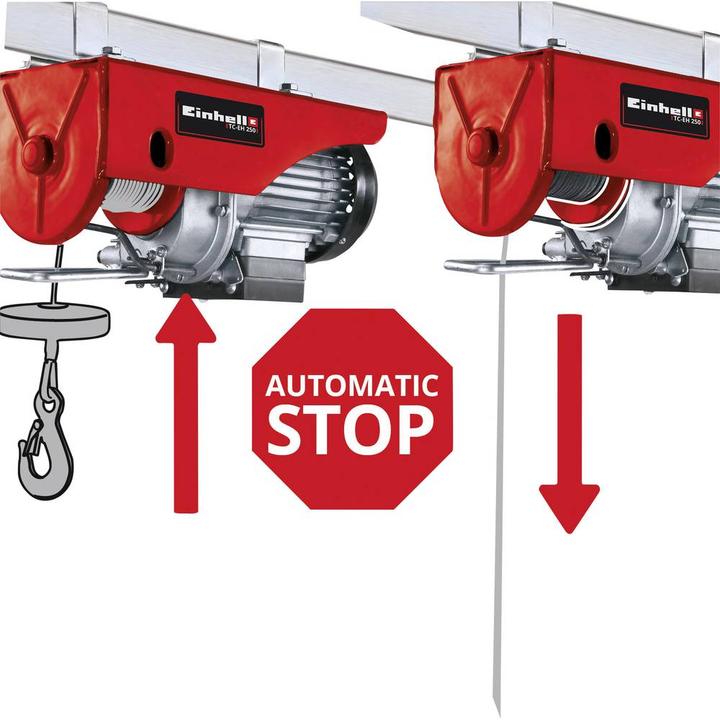

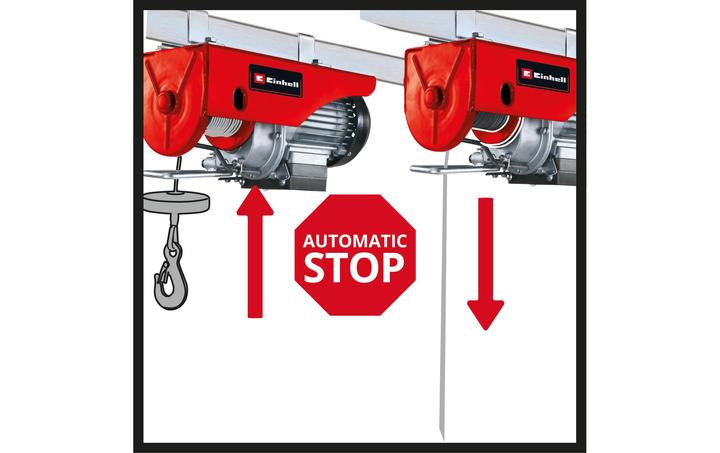

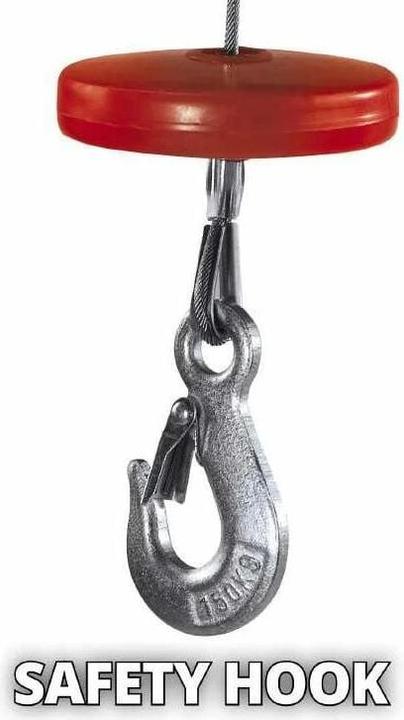

The TC-EH 250 wire hoist allows for the safe lifting of loads around the house, garden, and workshop at the push of a button. Its extensive features are in line with the latest technology. It is equipped with 12 meters of wire rope with a diameter of 3.2 mm, enabling it to lift loads of up to 250 kg using a pulley with a hook to a height of 5.7 m. Without the pulley, the maximum load is halved, while the lifting height increases to 11.5 m. The TC-EH 250 is equipped with numerous safety features. Its insulated control switch has an emergency stop function that ensures immediate shutdown at the push of a button. The robust motor is protected from overheating by a thermal switch. The twist-free wire rope prevents the load from twisting during lifting. A safety latch on the hook prevents the load from accidentally falling, and it is secured in any position by an automatic brake. The forced-trigger automatic limit switch ensures that the wire hoist safely shuts off in the end position. Two double clamps are provided for securing the wire hoist. A matching swivel arm is available separately for the TC-EH 250, allowing for the swinging of loads, such as when lifting to higher levels and floors.

Actual product image Einhell Rope hoist TC-EH 250

Key specifications

Load capacity

Lifting height

Strand material

Power supply

Weight

Rope hoist TC-EH 250

Hoists + workshop cranes

30-day right of return

General information

Colour

Material

Rope hoist + workshop crane Features

Power

Origin

Voluntary climate contribution

Product dimensions

Package dimensions

Using a pulley block, the device lifts up to 250 kg to a height of 5.7 m, whereas without the pulley block, the lifting height increases to 11.5 m and the maximum load is halved.

Variable Load Capacity and Lifting Height

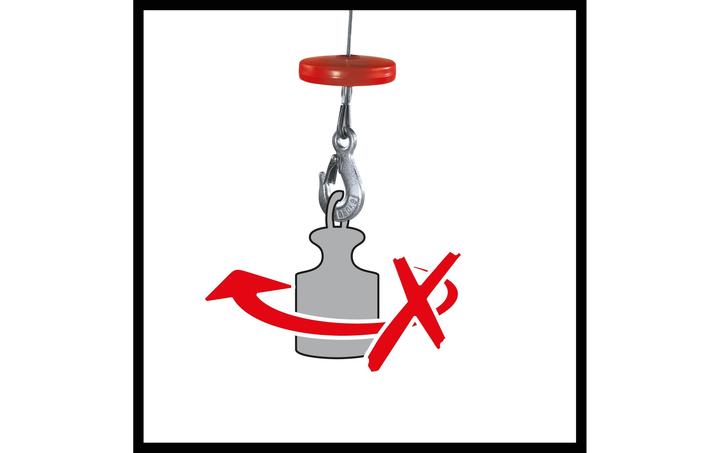

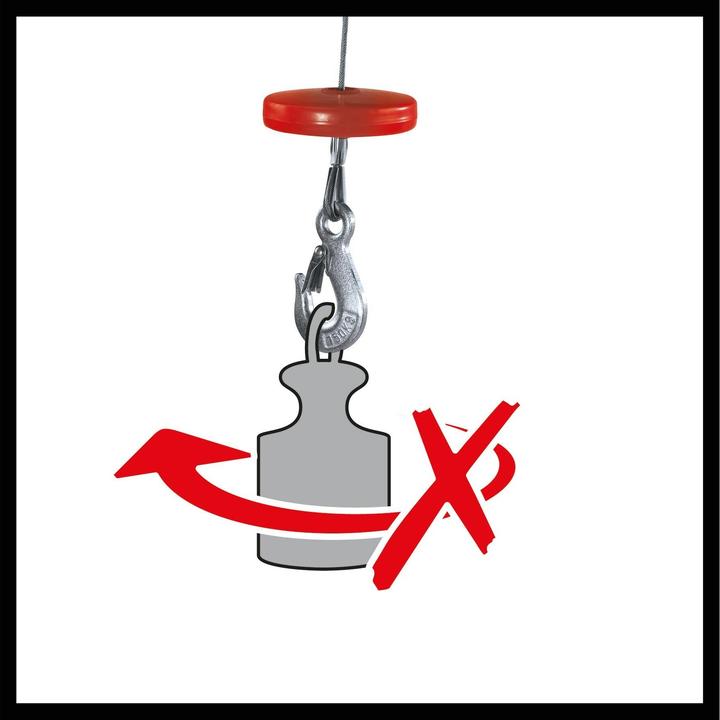

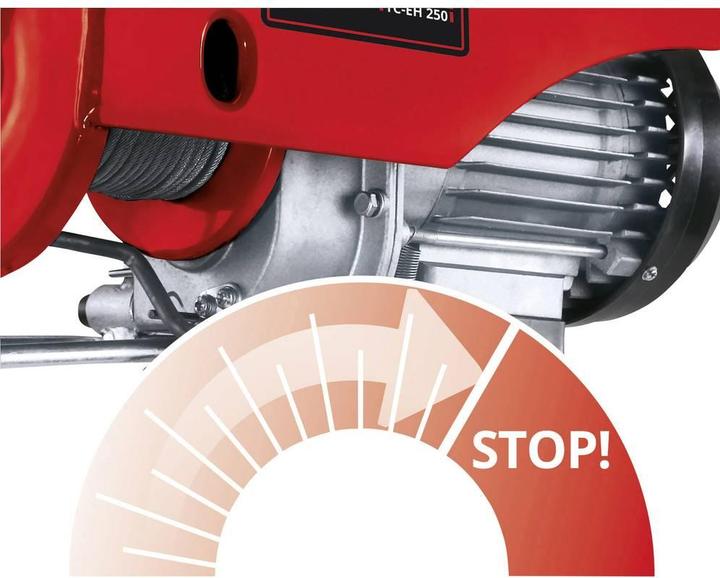

Equipped with an emergency stop switch, a thermal circuit breaker to prevent overheating, a anti-twist wire rope and an automatic brake, the design ensures safe handling.

Comprehensive Safety Features

Swivelling loads requires a separately available swivel arm, as the wire rope hoist is fitted with two double clamps as standard for mounting.

Expandable Swivel Function
