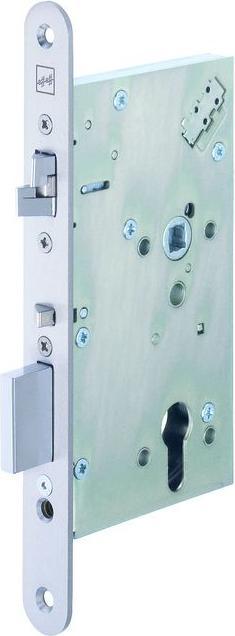

effeff Panic motorised lock 509X Panic function E DM65 RZ74 N9

Currently out of stock
Free shipping starting at 50.–

Product details

The effeff panic motor lock 509X is a state-of-the-art solution for door security that offers both functionality and user-friendliness. This self-locking door lock is equipped with electrical monitoring, allowing for reliable access control. The integrated panic function ensures that a quick and safe escape route is available in case of emergency. The lock is designed for left escape directions and different locking configurations, and it comes with two keys. The approvals according to the standards EN 179 and EN 1125 demonstrate high security standards and suitability for use in public buildings. The installation is carried out without cable transition, simplifying the installation process and enhancing security.

  • Self-locking motor lock with electrical monitoring
  • Integrated panic function for a safe escape route
  • Approvals according to EN 179 and EN 1125 for high security standards
  • Suitable for various escape directions and different locking configurations.

Key specifications

Material
MetalWood

General information

Item number
49214889
Manufacturer
effeff
Category
Lock cylinders
Manufacturer no.
509X701RZ-----4
Release date
9.9.2024

Material

Material group
MetalWood
Material
MetalWood

Escape route standard

Escape route standard
EN 179 / 1125

Locking Cylinder Features

Forend form
Round
Distance
65mm
Nut diameter
9 mm
Panic function
E
Escape direction
left / keyed alike / with 2 keys
