Edmolift Car level gauge with turntable
More than 10 pieces in stock at third-party supplier
Product details

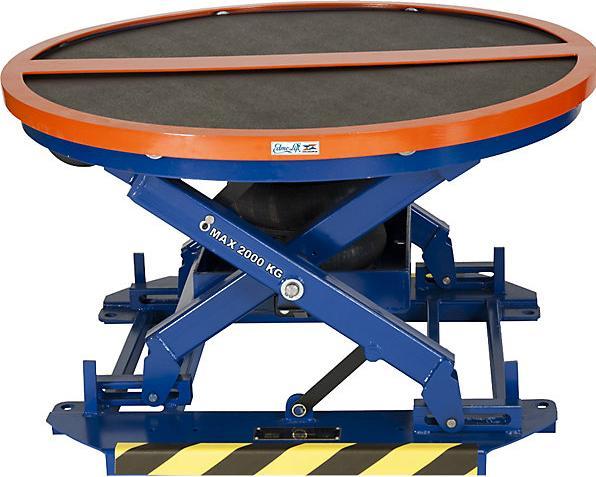

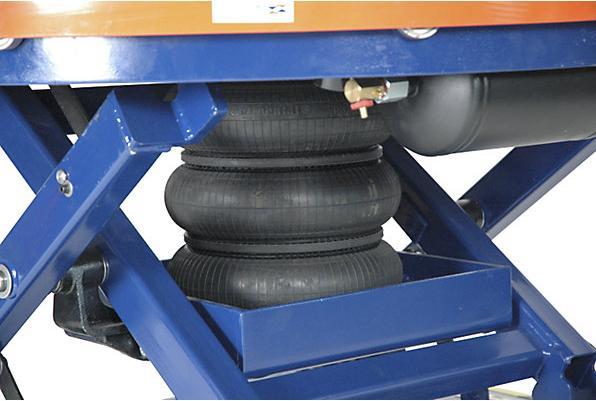

Auto-leveling device with turntable, turntable diameter 1110 mm, load capacity 150 - 2000 kg. Maintains height under varying loads. Back-friendly during loading and unloading. Easily adjustable with compressed air. Ball-bearing turntable. Height adjustment via air cushion and compressed air. Full foot clearance for optimal access. No power required.

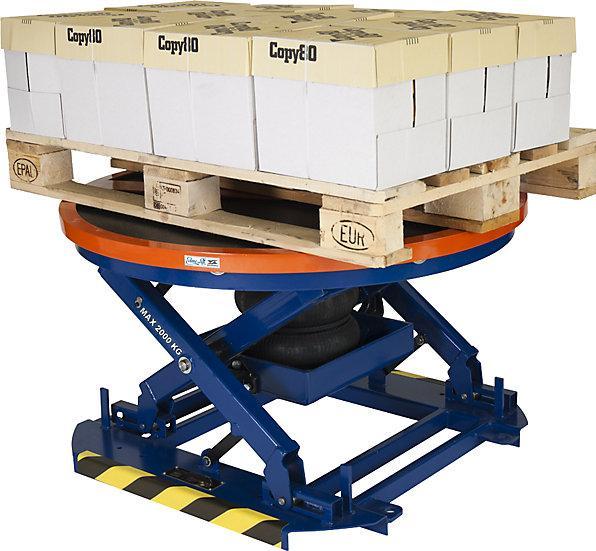

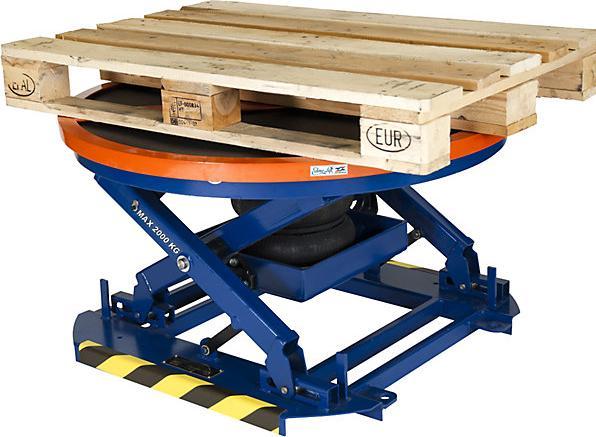

The auto-leveling device enables safe, faster, and easier loading and unloading of pallets. The PL 2002 can be adjusted to different loads using air pressure. Once set to the load, the pallet leveling device keeps the surface of the load at the same ideal working height. This prevents constant bending, stretching, and twisting, which are the most common causes of back problems. The PL 2002 provides employees with 360° access to the load. All components are located within the diameter of the ball-bearing turntable. Nothing protrudes, stands out, or gets in the way—there are no areas with limited accessibility. The rotating lift table is excellently suited for applications involving loads (up to 2000 kg) that frequently and significantly change. No power connection is needed. Simply inflate the air cushion with compressed air or a portable compressor and use the device anywhere! Integrated guide rails for easy repositioning with a forklift.
Significant relief for the back - fewer sick days.
Material | Steel / plastic |
Type of conveyor system | Level lift |
Lifting height | 0.46 m |
Load capacity | 2 t |
Item number | 9148631 |
Manufacturer | Edmolift |
Category | Conveyor technique |
Release date | 10.7.2018 |
External links |
Colour | Orange |
Exact colour description | Signal orange |
Material group | Metal |
Material | Steel / plastic |
Surface finish | Powder coating |
Roll material | Steel |
Type of conveyor system | Level lift |
Lifting height | 0.46 m |
Load capacity | 2 t |
Frame material | Plastic, Steel |
Roller storage | Ball bearing turntable |
CO₂ emissions | 123.97 kg |
Climate contribution | CHF 2.95 |
Length | 111 cm |
Width | 111 cm |
