Eaton Surface-mounted flat distributor

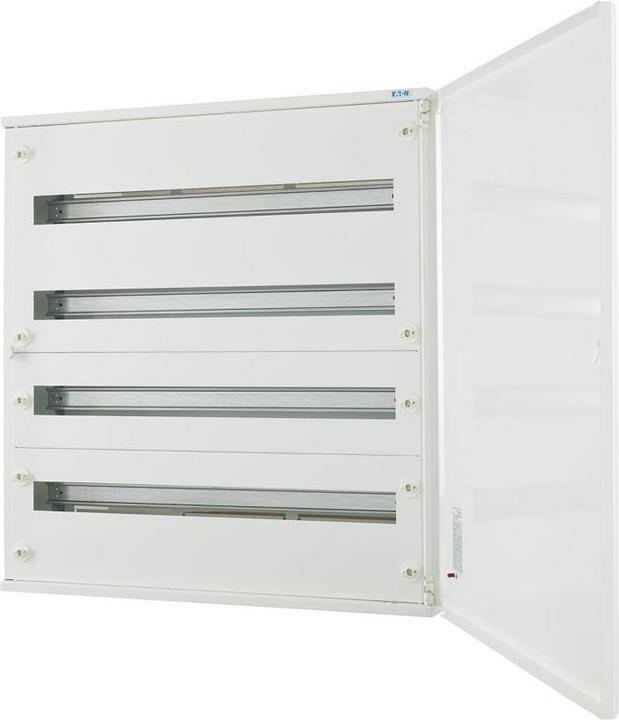

Surface-mounted flat distribution board BF-O-./..-C complete, white RAL 9016, with 24 separation fields per row and 4 rows. Dimensions: Height 750 mm, Width 543 mm, Depth 140 mm. Includes door, front panels, DIN rail frame, and N/PE connections. The housing features a closed design with a back panel that can be used as a mounting surface, two cable entry flanges for flat distributors with 24HP width at the top, and pre-mounted cable access openings at the bottom. The connections are pre-mounted on the housing, preventing any loss of separation fields. The wall shelf includes a door frame with easily breakable cable access openings and a depth of 127 mm. It also has four side mounting ears. A steel sheet door with a rotating bolt lock is included, and a steel sheet door with extended depth for the installation of RMQ components is available as an accessory. The removable DIN rail frame accommodates 45 mm rail-mounted devices with a 150 mm DIN rail spacing. An Eaton circuit breaker can be integrated with an installation kit, and the installation of a universal mounting plate is possible with an installation kit for surface-mounted housings. The metal front panel is secured to the housing with a special lock.
