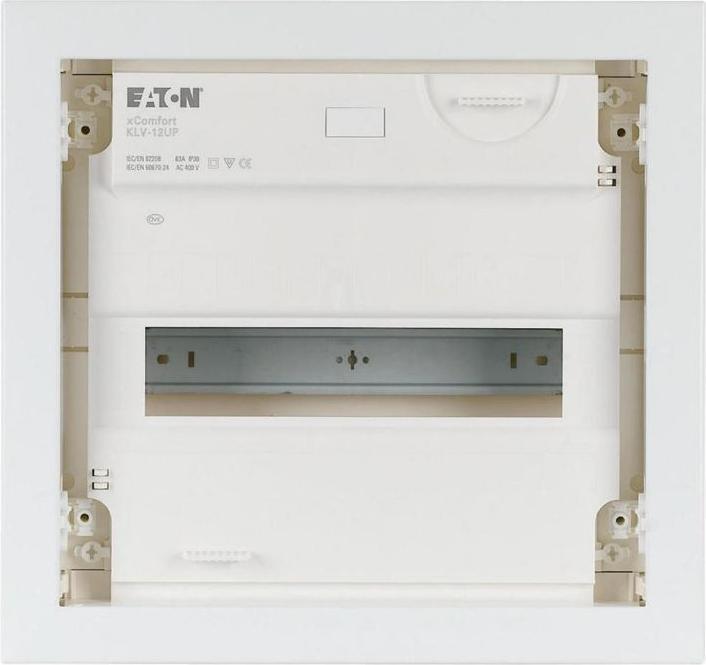

Eaton KLV-12UPS-SF

Eaton small distribution board KLV-12UPS-SF

Manufacturer: Eaton
Designation: Small distribution board
Type: KLV-12UPS-SF
Mounting type: Flush-mounted
Number of rows: 1
Width in subdivision units: 12
Type of cover: Door
Design cover: With cut-out
Transparent cover/door: No
Material of enclosure: Plastic
Height: 340 mm
Width: 360 mm
Depth: 100 mm
Installation depth: 88 mm
Internal depth: 75 mm
Earth terminal block: No
Neutral terminal block: No
DIN rail: Yes
With mounting plate: No
Mounting option: Yes
EMC version: Yes
Colour: White
RAL number: 9016
Protection class (IP): IP30
With lock: No
Type of locking: Other
Signal-permeable door: No

Further details: KLV second-generation flush-mounted small distribution board, protection class II, plastic enclosure with sheet steel door, front cover can be lead-sealed and laser-marked in accordance with IEC/EN 60670-24, plus 2 division units reserve per row, marking slots in wall box, unique super-flat door frame design, sturdy rotary door bolt optionally replaceable with safety lock, cable holder for tidy wiring, optionally available in project delivery form, optionally door with frame in RAL colour of choice, extensive range of accessories.

Scope of delivery: Enclosure, gear tray, front cover, neutral and earth terminals with SK screw technology, spirit level for alignment, 3D plaster compensation with up to 18 mm depth compensation, cable holder, nail tabs, assembly instructions, labelling sheet, practical special packaging.

Standards: According to IEC/EN 60670-24, DIN 43871, IEC/EN 62208 and thus approved for distributions according to IEC/EN 61439-3.
EAN: 4015081741441.
