Eaton Fork connection 3-phase EVGK-3PHAS/6MODUL

Save CHF2.70
Ratings
BrandMore from Eaton
Delivered between Wed, 14.10. and Fri, 16.10.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Show all

Product details

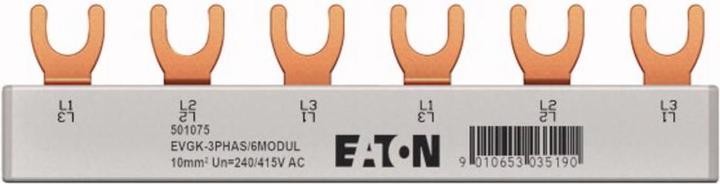

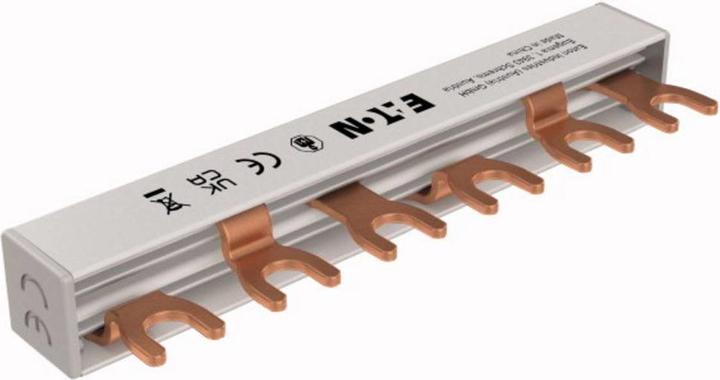

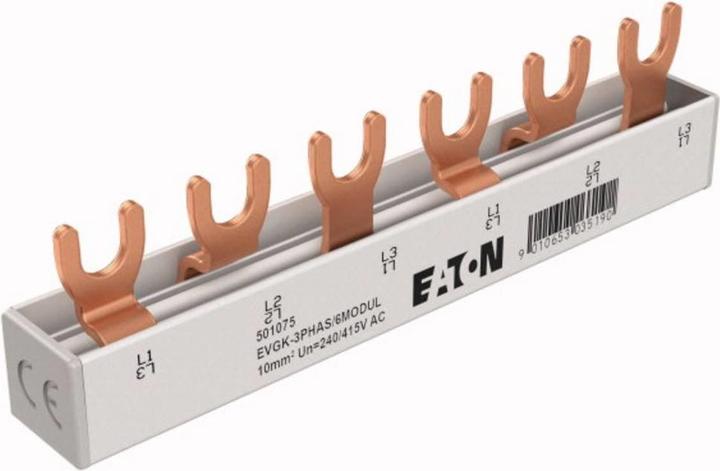

The Eaton fork busbar 3-phase EVGK-3PHAS/6MODUL is a high-quality busbar designed for use with circuit breakers, residual current devices, and combined residual current protective devices. With a rated continuous current of 63 A and a maximum operating voltage of 415 V, this product provides a reliable and safe connection in electrical installations. The fork busbar is halogen-free and meets fire behavior class V2, making it a safe choice for various applications. It is individually cuttable, allowing for flexible adaptation to specific requirements. The use of PC-ABS as insulation material and PP for touch protection ensures a high dielectric strength of 36 kV/mm and an overvoltage category III, enhancing the safety and longevity of the product. Pre-assembled end caps are also available, making installation easier.

  • Suitable for up to 2 devices
  • Individually cuttable for flexible applications
  • Halogen-free and meets fire behavior class V2
  • Dielectric strength of 36 kV/mm
  • Tested according to VDE standards (DIN EN 61439-1:2021-10, DIN EN 61439-6:2013-06).

Key specifications

Length
106 mm
Width
1000 mm

General information

Item number
23100424
Manufacturer
Eaton
Category
Wiring closet technology
Manufacturer No.
EP-501075
Release date
14.11.2022
Sales rank in Category Wiring closet technology
85 of 12015
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
PC-ABS, PP

Distribution cabinet technology Features

Nominal current
63 A
Nominal voltage
415 V
number of poles
3
breaking capacity
25 kA
Divisions
6x

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.44

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
106 mm
Width
1000 mm
